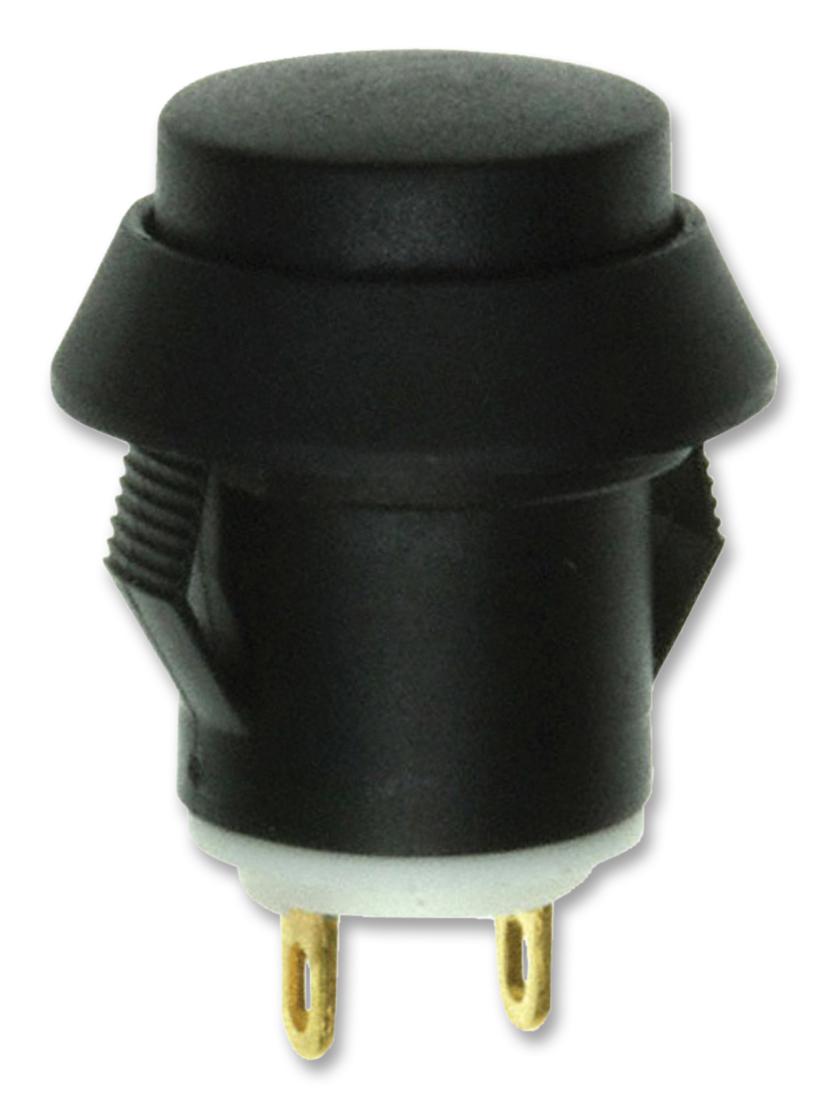

C&K COMPONENTS AP4E200SZBE industrial pushbutton switch
The industrial pushbutton switch from the AP series features a rugged, IP67 sealed design suitable for harsh environments and demanding applications such as off-road, medical, and transportation industries. It offers reliable momentary SPST operation with a mechanical life of 1,000,000 cycles. Constructed with PBT housing and copper alloy contacts with gold plating, it supports a variety of actuator colors and LED options, including bi-color and non-illuminated versions. The switch provides excellent vibration and shock resistance, operating in temperatures from -40°C to 85°C, and features easy snap-in or threaded mounting options for versatile installation.
C&K COMPONENTS AP4E200SZBE industrial pushbutton switch Specifications:
- IP67 sealing for threaded body, IP65 for snap-in version
- Mechanical life: 1,000,000 cycles
- Total travel: 2.1 ± 0.2 mm
- Operating force: 4N + 1N (standard), 2N + 0.5N (optional)
- Operating temperature: -40°C to 85°C
- Vibration resistance: 10-500 Hz, 10g Max
- Shock resistance: 60g for 11ms sawtooth wave
- Contact rating: 200mA @ 24 V DC, 125mA @ 125 V AC
- Dielectric strength: 1000 V AC min
- Insulation resistance: 1 GΩ @ 500 VDC
- Housing: PBT, Cap: PBT, Actuator: Polycarbonate (illuminated) or PBT (non-illuminated)
- Wire leads: Black 22 AWG, UL1569
- Mounting: Snap-in or threaded with hex nut, lock washer, gasket
- Environmental: Operating temperature -40°C to 85°C, RoHS compliant
- Materials: Copper alloy contacts, gold plated, epoxy sealed terminals
Buy the Ckswitches AP Series – Reliable Industrial Pushbutton Switch for Harsh Environments
Order the CK Switches AP Series industrial pushbutton switch online today for dependable performance in harsh environments. Featuring IP67 sealing, a mechanical life of 1,000,000 cycles, and a variety of actuator colors and illumination options, this switch is designed for durability and versatility. Easy to install with snap-in or threaded mounting, it withstands vibration, shock, and extreme temperatures. Whether for automation, medical, transportation, or off-road applications, buy online now for prompt delivery and reliable operation in your industrial projects.
Get CK Switches AP Series pushbutton switch today—built for precision, durability, and ease of installation in demanding industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS AP4E200SZBE?
You can click on the BUY or RFQ button to purchase AP4E200SZBE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part AP4E200SZBE?
You can download the AP4E200SZBE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of AP4E200SZBE?
C&K COMPONENTS
