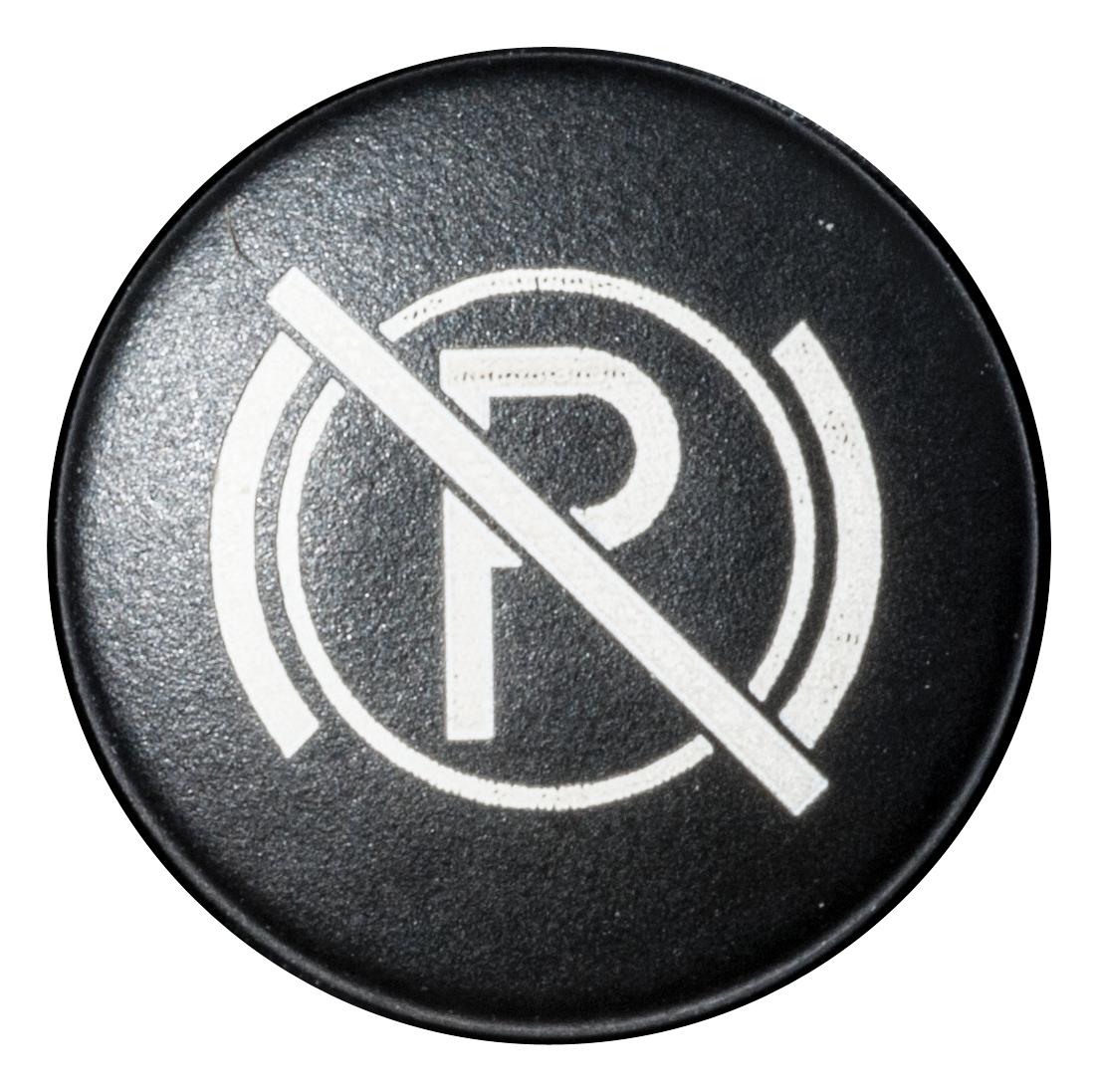

C&K COMPONENTS APB4E07TZBE004 Backlit Pushbutton Switch
The APB Series Backlit Pushbutton Switch is a durable, IP67 sealed industrial switch designed for harsh environments and demanding applications. It features a SPST momentary contact function with over 1,000,000 cycle life, illuminated LED options in white and blue, and both snap-in and threaded mounting options. Made with high-quality PBT housing, gold-plated copper terminals, and silicone rubber internal seals, it supports temperatures from -40°C to 85°C. Suitable for use in industrial, medical, transportation, gaming, and military fields, offering reliable performance and easy installation.
C&K COMPONENTS APB4E07TZBE004 Backlit Pushbutton Switch Specifications:
- FUNCTION: SPST Momentary
- CONTACT ARRANGEMENT: N.O.
- Mounting Types: Snap-in (no panel seal), Threaded (hex nut, lock washer, panel seal gasket)
- Mechanical Operating Life: 1,000,000 cycles
- Total Travel: 2.1 + 0.2 mm
- Operating Point: 1.55 + 0.25 mm
- Over Travel: 0.6 min.
- Operating Force: 4N (standard), optional 2N + 0.5N
- Vibration: 10-500 Hz, 10g Max
- Shock: 60g, 11ms sawtooth wave
- Contact Rating: 200mA @ 24 V DC resistive, 100mA @ 50 V DC resistive, 400mA @ 32 V AC resistive, 125mA @ 125 V AC resistive
- Dielectric Strength: 1000 V AC min.
- Insulation Resistance: 1 GΩ @ 500 VDC
- Initial Contact Resistance: 50 mΩ max
- Bounce Time: <5 ms
- Housing Material: PBT
- Base Material: PBT
- Cap Material: Painted polycarbonate
- Actuator: Clear polycarbonate (illuminated)
- Internal Seal: Silicone rubber
- Terminals: Copper alloy, gold over silver plating
- Wire Leads: UL1569, 22 AWG, black
- Operating Temperature: -40°C to 85°C
- Sealing: P67 for threaded, IP65 for snap-in
- ESD Protection: 20 KV min.
Buy the Buy CKSwtiches APB Series Part Number 515000000 Online
Purchase the CKSwtiches APB Series Backlit Pushbutton Switch online today to benefit from durable IP67 sealing, high cycle life, and versatile mounting options. With illuminated LED indicators in white and blue, this switch offers reliable performance in demanding environments like industrial, medical, transportation, gaming, and military sectors. Made with high-quality materials, including PBT housing, gold-plated copper terminals, and silicone rubber seals, it ensures long-lasting operation from -40°C to 85°C. Simplify installation with both snap-in and threaded mounting options, and enjoy superior electrical and mechanical reliability for your projects.
Order your CKSwtiches APB4E07TZBE004 series illuminated pushbutton today and ensure reliable control in your industrial applications with advanced IP67 sealing.
