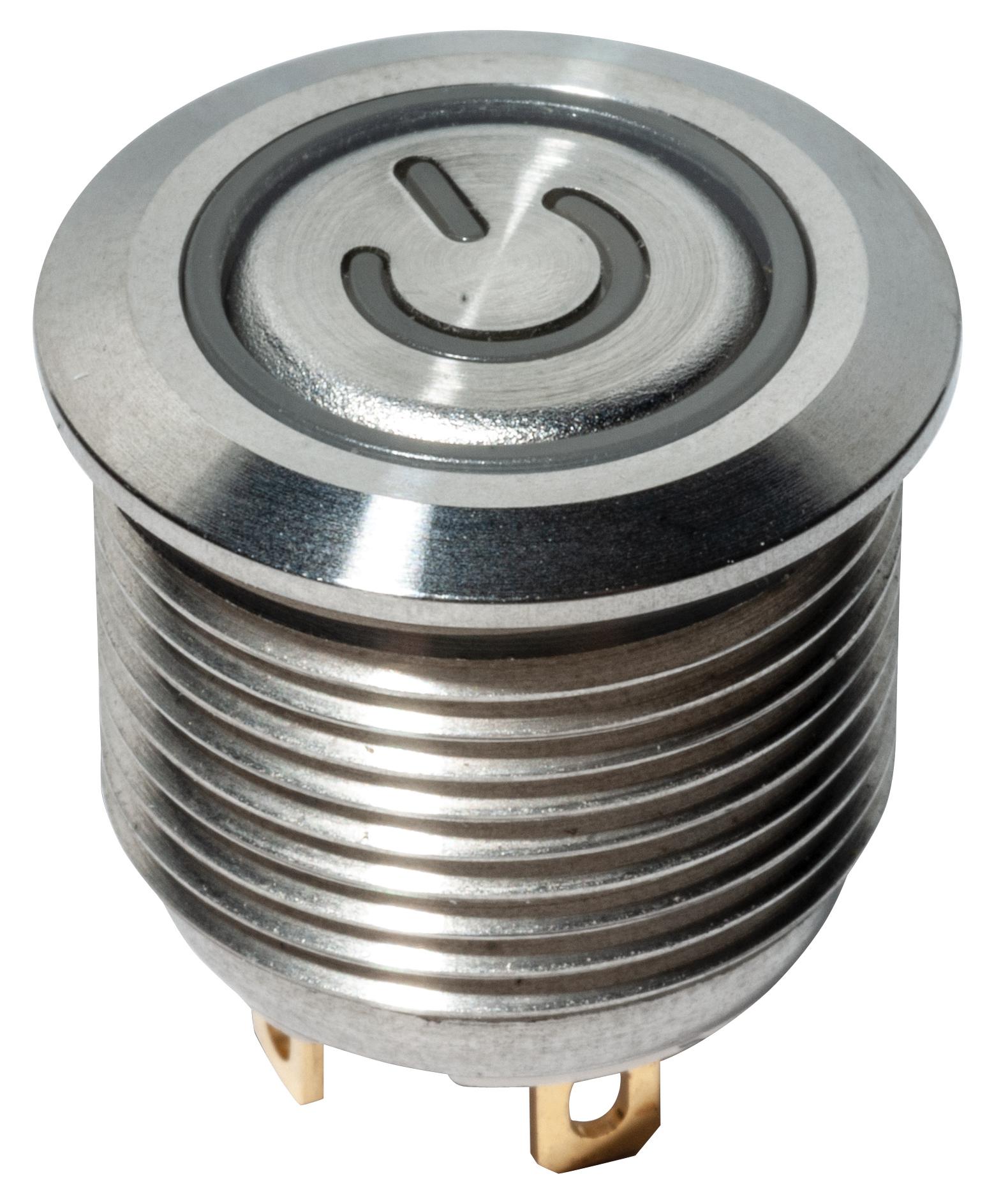

C&K COMPONENTS ATP16DL5306B4SA04G Anti-Vandal Pushbutton Switch
The ATP16 Series anti-vandal sealed pushbutton switch offers robust, IP67-rated protection suitable for industrial, security, and vending applications. Available in momentary and lock versions, these switches feature various actuator styles, LED illumination options, and contact configurations. With a rated electrical capacity of 2A at 36V dc, multiple contact and terminal options, and a high operating cycle life, they ensure reliable operation even in harsh environments. The switches are constructed from durable materials like stainless steel and anodized aluminum, with silicone seals for superior sealing. Easy to mount with threaded front panel design, suitable for safety, security, parking, and vending systems, meeting RoHS compliance.
C&K COMPONENTS ATP16DL5306B4SA04G Anti-Vandal Pushbutton Switch Specifications:
- Function: SPST with momentary or lock operation
- Bushing: Stainless steel / Aluminum alloy, anodized
- Contact Arrangement: N.O.
- Base Material: PBT (UL 94-A0), Nylon 6/6
- Mounting Type: Threaded front panel mount
- Actuator Material: PC (UL 94-V2); POM (lock version)
- Spring Material: Steel
- Sealing: Silicone O-ring for IP67 protection
- Operating Life: 1,000,000 cycles (Momentary), 100,000 cycles (Lock)
- Operating Temperature: -20°C to +70°C
- Electrical Rating: 2A / 36V dc
- Terminal Plating: Gold flash (optional), Brass, Silver or gold plated contacts
- Total Travel: Momentary 2.0 mm; Lock 2.3 mm
- Operating Force: 4.5 ± 1.5N
- Dielectric Strength: 2,000 V RMS @ sea level
- Insulation Resistance: ≥ 1,000 MQ @ 500 VDC
Buy the Buy ATP16 Series Anti-Vandal Sealed Pushbutton Switch Part Number ATP16DL5306B4SA04G Online
Purchase the ATP16 Series anti-vandal sealed pushbutton switch online today to benefit from their IP67-rated protection, high cycle life, and robust materials. Designed for industrial, security, vending, and parking applications, these switches offer both momentary and lock options with LED illumination and various actuator styles. Easy to install with threaded mounting, they are suitable for demanding environments requiring reliable, long-lasting performance. Order now to secure quick delivery and professional support for your operational needs.
Order your ATP16 Series sealed pushbutton switch today and ensure reliable operation in harsh environments with high durability and versatile options.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATP16DL5306B4SA04G?
You can click on the BUY or RFQ button to purchase ATP16DL5306B4SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATP16DL5306B4SA04G?
You can download the ATP16DL5306B4SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATP16DL5306B4SA04G?
C&K COMPONENTS
