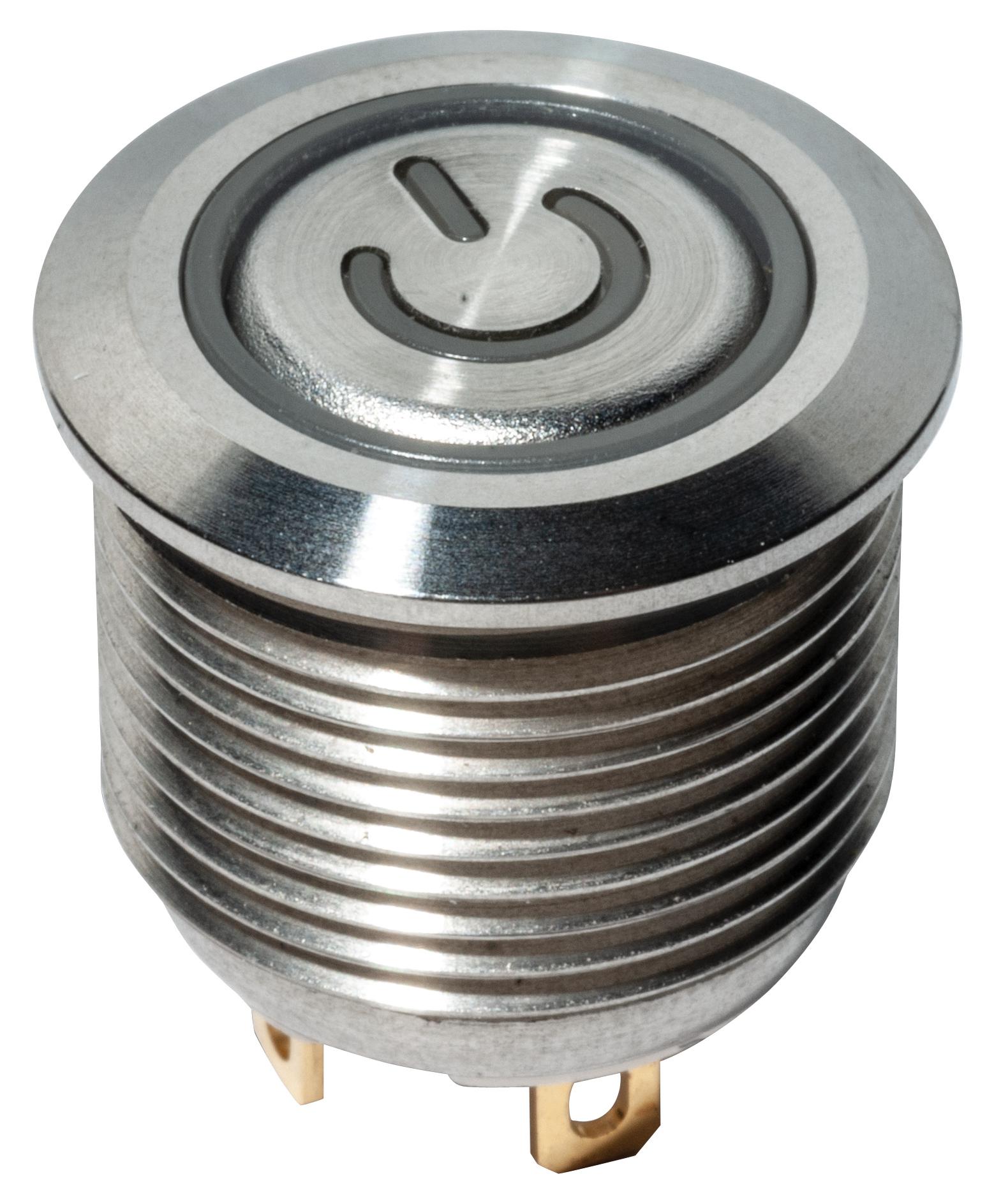

C&K COMPONENTS ATP16DL5606B3SA04G Anti-Vandal Sealed Pushbutton Switch
The ATP16 Series anti-vandal sealed pushbutton switch offers robust IP67 protection with a durable stainless steel or anodized aluminum bushing. It features a momentary or lock version rated at 2A / 36Vdc, with up to 1,000,000 operating cycles for reliable performance. Its versatile design includes LED illumination options in multiple colors, dual contact configurations, and mechanical actuation with various styles. Suitable for industrial, security, ticketing, and vending applications, it ensures high durability, environmental resistance, and consistent electrical performance in demanding environments.
C&K COMPONENTS ATP16DL5606B3SA04G Anti-Vandal Sealed Pushbutton Switch Specifications:
- Function: SPST; Mechanical function: Momentary or Lock
- Bushing: Stainless steel or Aluminum alloy, anodized
- Contact Arrangement: N.O.
- Base: PBT (UL 94-A0), Nylon 6/6 (lock version)
- Mounting Type: Threaded front panel
- Actuator: PC (UL 94-V2); POM (lock version)
- Torque for threaded body: 11.5 kgf/cm
- Spring Material: Steel
- Sealing: Silicone O-ring
- Operating Life: 1,000,000 cycles (Momentary), 100,000 cycles (Lock)
- Operating Temperature: -20°C to +70°C
- Sealing/Protection: IP67
- Contact Rating: 2A / 36Vdc
- Initial Contact Resistance: 50 mΩ max @1A 12VDC
- Dielectric Strength: 2,000 V RMS @ sea level
- Insulation Resistance: 1,000 MΩ min. @ 500 VDC
- Total Travel: Momentary 2.0 mm; Lock 2.3 mm
- Operating Force: 4.5 + 1.5 N
Buy the CK Switches Series ATP16 Anti-Vandal Sealed Pushbutton: ATP16DL5606B3SA04G
Enhance your industrial, security, or vending installations with the ATP16 Series anti-vandal sealed pushbutton switch. Designed for demanding environments, it offers IP67 sealing, a long operational cycle life, LED illumination options, and versatile locking or momentary functions. Its stainless steel or anodized aluminum bushing ensures durability and resistance to harsh conditions, making it ideal for various applications. Easy to install and highly reliable, this switch is your perfect solution for secure, robust, and visually identifiable control points.
Buy CK Switches ATP16DL5606B3SA04G now and experience unmatched durability, environmental resistance, and reliable operation in demanding industrial environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATP16DL5606B3SA04G?
You can click on the BUY or RFQ button to purchase ATP16DL5606B3SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATP16DL5606B3SA04G?
You can download the ATP16DL5606B3SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATP16DL5606B3SA04G?
C&K COMPONENTS
