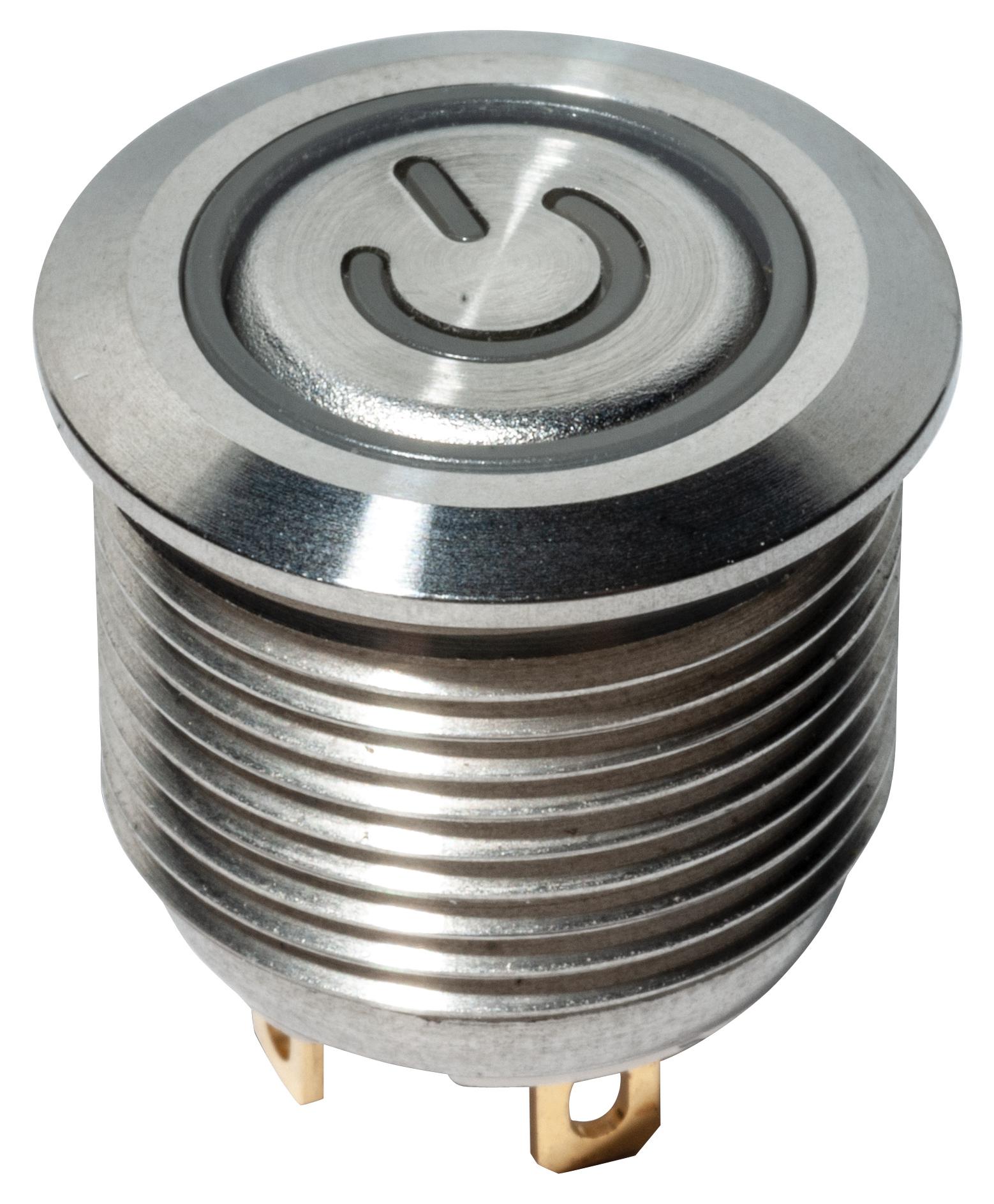

C&K COMPONENTS ATP16SL1612M4SA04G Anti-Vandal Pushbutton Switch
The ATP16 Series anti-vandal sealed pushbutton switch offers reliable industrial control with IP67 sealing, rated at 2A/36V DC, ideal for safety, security, and vending applications. It features a robust stainless steel or anodized aluminum housing, with options for momentary or lock functions, dual or single-color LED illumination, and various actuator styles including ring and power logo. Designed for high durability, it withstands over 1 million cycles, operates between -20°C to +70°C, and includes IP67 protection, making it suitable for harsh environments and industrial automation.
C&K COMPONENTS ATP16SL1612M4SA04G Anti-Vandal Pushbutton Switch Specifications:
- Function: SPST
- Bushing: Stainless steel or anodized aluminum
- Contact Arrangement: N.O.
- Mounting Type: Threaded front panel mount
- Actuator Material: PC or POM
- Internal Assembly: POM / PA66
- Spring: Steel
- Sealing/Protection: IP67
- Operating Force: 4.5 + 1.5N
- Operating Temperature: -20°C to +70°C
- Electrical Contact Rating: 2A / 36V DC
- Life Cycle: 1,000,000 for momentary, 100,000 for lock
- Initial Contact Resistance: 50 mΩ max @ 1A, 12V DC
- Dielectric Strength: 2,000 V RMS @ sea level
- Insulation Resistance: 1,000 MΩ min. @ 500 VDC
- Total Travel: Momentary 2.0 mm; Lock 2.3 mm
- Contact Terminals: Brass, Silver, or Gold plated
- Operating Environment: -20°C to +70°C
- Dimensions: Not specified in text, refer to external datasheet
Buy the ATP16 Series – Reliable Industrial Anti-Vandal Pushbutton for Industrial Applications
Purchase the ATP16 Series anti-vandal sealed pushbutton switch online today and ensure your industrial projects benefit from high durability, IP67 sealing, and versatile LED options. Designed for safety and security applications, this switch withstands harsh environments, offers over a million cycles life, and conforms to RoHS standards. Suitable for vending machines, parking ticket systems, and industrial equipment, it features various actuator styles, dual/single color LEDs, and retains reliable electrical performance in extreme conditions. Get yours now for seamless integration and long-lasting operation.
Order your ATP16 Series anti-vandal pushbutton switch today and enhance your industrial controls with dependable sealing, LED illumination, and high durability.
