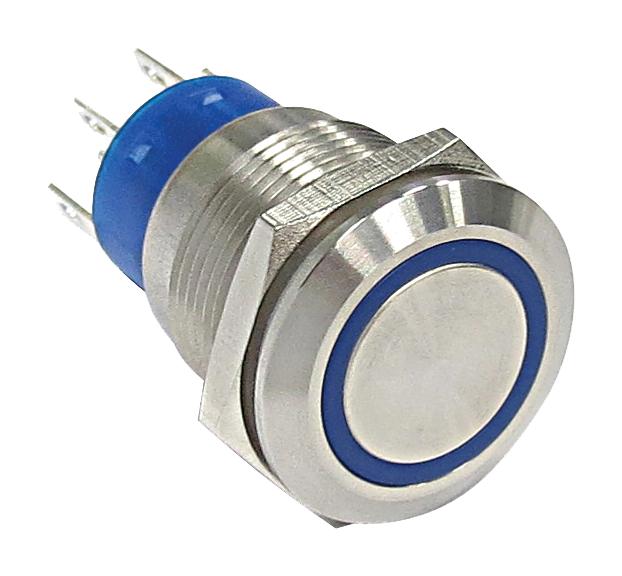

C&K COMPONENTS ATP19SL3624B0DA03Q Anti-Vandal Pushbutton Switch
The ATP19 Series Anti-Vandal Sealed Pushbutton Switch offers reliable operation in harsh environments, featuring IP67 sealing and IK10 impact resistance with a stainless steel bushing. Designed for industrial applications, it supports momentary or lock functionality, with a contact rating of 3A at 250VAC and 28VDC, and a mechanical lifespan of up to 1,000,000 cycles. The switch is customizable with various actuator styles, LED indicator colors, and terminal options, making it suitable for control panels, safety systems, and communication equipment, ensuring durability and operational safety in demanding settings.
C&K COMPONENTS ATP19SL3624B0DA03Q Anti-Vandal Pushbutton Switch Specifications:
- Function: Single pole and double poles
- Contact arrangement: N.O. and N.C.
- Mounting type: Threaded front panel mount
- Torque for threaded body: 5-14 Nm
- Mechanical operating life: Momentary 1,000,000 cycles, Self-lock 500,000 cycles
- Total travel: about 3.2 mm
- Operating force: 2.5 ± 1N (single pole), 3.5 ± 1N (double pole)
- Contact rating: 3A/250VAC, 3A/28VDC, Ith 54/250VAC
- Electrical operating life: 50,000 cycles at full load
- Dielectric strength: 2,000 V RMS @ sea level
- Insulation resistance: 1,000 MΩ min. @ 500 VDC
- Initial contact resistance: 50 mΩ max. @1A 12VDC
- Materials include stainless steel, nickel-plated brass, PBT base, PC actuator, silicone sealing O-ring, brass terminals with silver or gold plating
- Operating temperature: -20°C to +55°C
- Sealing/protection: IP67, IK10 (stainless steel bushing)
Buy the C&K ATP19 – Reliable Sealed Pushbutton for Industrial Applications
Enhance your industrial control systems with the ATP19 series anti-vandal sealed pushbutton switches, offering IP67 protection, multiple actuator styles, LED indicators, and high durability. Perfect for safety, security, communication, and control panels, this switch withstands harsh environments, with a lifespan of up to 1 million cycles. Its customizable options allow seamless integration into existing setups, ensuring reliable and safe operation in demanding applications. Purchase online today for fast delivery and dependable performance.
Order your C&K ATP19 Series sealed pushbutton switch today and equip your control panels with a durable, vandal-resistant component that ensures safety and longevity.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATP19SL3624B0DA03Q?
You can click on the BUY or RFQ button to purchase ATP19SL3624B0DA03Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATP19SL3624B0DA03Q?
You can download the ATP19SL3624B0DA03Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATP19SL3624B0DA03Q?
C&K COMPONENTS
