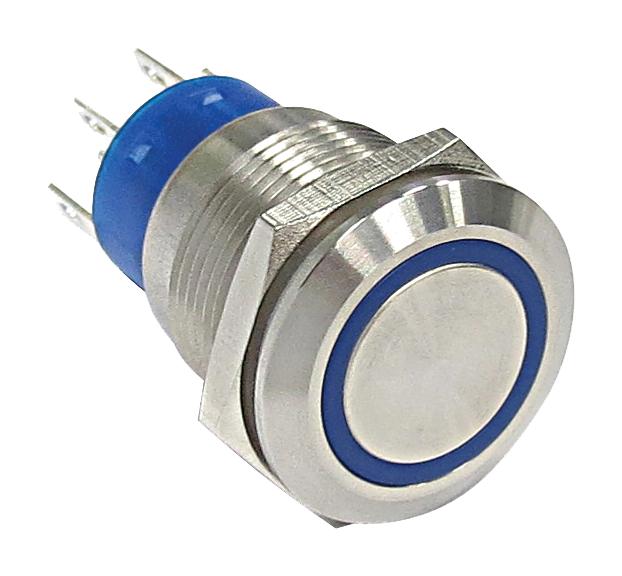

C&K COMPONENTS ATP19SL3712B0SA03Q Anti-Vandal Pushbutton Switch
The ATP19 Series Anti-Vandal Sealed Pushbutton Switch offers durable, IP67-rated protection with stainless steel bushings, ideal for industrial, control, and safety applications. It features momentary or lock functions with a life cycle of up to 1,000,000 cycles, and a contact rating of 3A at 250VAC, suitable for demanding environments. The switch includes LED illumination options in various colors, pre-wired connections, and customizable actuator styles, including raised, dome, and power logos, making it adaptable for control panels, security systems, and traffic lights. Its robust build ensures longevity and reliable performance in harsh settings.
C&K COMPONENTS ATP19SL3712B0SA03Q Anti-Vandal Pushbutton Switch Specifications:
- Function: Single pole and double poles
- Contact Arrangement: N.O. and N.C.
- Mounting Type: Threaded front panel mount
- Torque for threaded body: 5-14 Nm
- Operating Life: Momentary 1,000,000 cycles, Lock 500,000 cycles
- Total Travel: about 3.2 mm
- Operating Force: 2.5 ± 1 N for 1 pole, 3.5 ± 1 N for 2 poles
- Contact Rating: 3A/250VAC, 3A/28VDC
- Electrical Life: 50,000 cycles at full load
- Dielectric Strength: 2000 V RMS @ sea level
- Insulation Resistance: 1,000 MΩ min. @ 500 VDC
- Initial Contact Resistance: 50 mΩ max. @ 1A 12VDC
- Operating Temperature: -20°C to +55°C
- Sealing / Protection: IP67 / IK10 with stainless steel bushing
- Materials: Bushing - stainless steel/nickel brass/aluminum alloy; Base - PBT/PC; Actuator - PC/stainless steel/nickel brass/aluminum; Terminals - brass with silver/gold plating
Buy the C&K Series ATP19 Anti-Vandal Sealed Pushbutton Switch: ATP19SL3712B0SA03Q
Order the C&K ATP19SL3712B0SA03Q now online to enjoy a robust, sealed pushbutton switch perfect for industrial, control panels, and security systems. Featuring IP67 protection, stainless steel bushing, and customizable LED illumination with various colors, it guarantees durability and reliable operation in demanding settings. Designed with high-quality materials such as copper contacts with silver or gold plating, and rated for resistive loads up to 3A at 250VAC, this switch offers long mechanical and electrical life for your automation and safety needs. Easy to install and highly customizable, it’s essential for durable control solutions.
Buy C&K ATP19SL3712B0SA03Q now and experience unmatched reliability and durability in harsh environments with IP67 sealing and LED illumination.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATP19SL3712B0SA03Q?
You can click on the BUY or RFQ button to purchase ATP19SL3712B0SA03Q from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATP19SL3712B0SA03Q?
You can download the ATP19SL3712B0SA03Q datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATP19SL3712B0SA03Q?
C&K COMPONENTS
