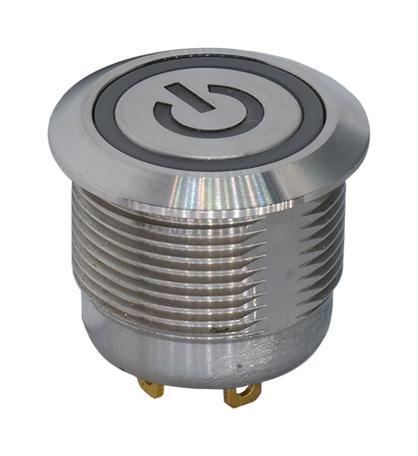

C&K COMPONENTS ATPS19SL1303M0SA04G Sealed Pushbutton Switch
The ATPS19 Series Anti-Vandal Short-Body Sealed Pushbutton Switch is a durable, high-reliability component designed for safety, security, and industrial systems. Featuring a IP67-sealed stainless steel bushing and IK10 resistance, it withstands harsh environments. With a mechanical life of 1,000,000 cycles, it offers a momentary SPST contact with a 2A/36Vdc rating and a total travel of 1.8 mm. The switch is available in various actuator styles, LED illumination options, and terminal configurations, making it ideal for secure, vandal-resistant applications.
C&K COMPONENTS ATPS19SL1303M0SA04G Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- Mechanical Life: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 + 0.2 mm
- OPERATING FORCE: 4.5 + 1.5N
- CONTACT RATING: 2A / 36Vdc
- ELECTRICAL LIFE: 200,000 cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS @ sea level
- INSULATION RESISTANCE: 1,000 MOQ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max @1A 12VDC
- BUSHING MATERIAL: Stainless steel
- BASE MATERIAL: PA66, white (UL 94-VO)
- ACTUATOR: PC, translucent (UL 94-V2), std steel
- SEALING: Silicone / Silicone O-ring
- CONTACT TERMINALS: Brass, gold flash plated / Brass, silver alloy
- HEX NUT: Brass (Nickel plated)
- OPERATING TEMPERATURE: -20°C to +70°C
- SEALING / PROTECTION: IP67
Buy the Buy Vandal-Resistant Sealed Pushbutton Switch Part Number ATPS19SL1303M0SA04G Online
Discover the ATPS19 Series sealed pushbutton switch, engineered for harsh environments, combining durability, IP67 sealing, and LED indicators. With a long lifespan of 1,000,000 mechanical cycles, it offers exceptional reliability for industrial controls, security systems, and vending machines. Its compact, vandal-resistant design features stainless steel components, a threaded front panel mount, and a variety of actuator options including LED illumination. Perfect for critical applications where safety and durability are paramount, this switch ensures consistent performance even in demanding conditions.
Buy Vandal-Resistant Sealed Pushbutton Switch ATPS19SL1303M0SA04G now and experience unmatched reliability and industrial-grade durability for your security and safety applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS19SL1303M0SA04G?
You can click on the BUY or RFQ button to purchase ATPS19SL1303M0SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS19SL1303M0SA04G?
You can download the ATPS19SL1303M0SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS19SL1303M0SA04G?
C&K COMPONENTS
