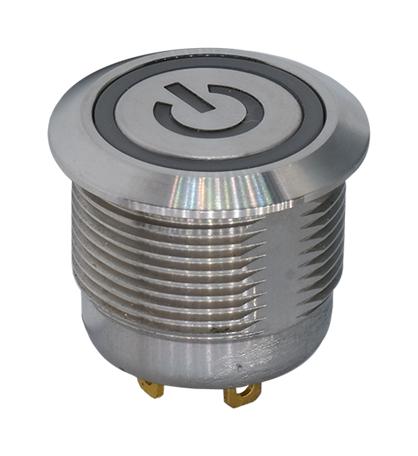

C&K COMPONENTS ATPS19SL5303M0SA04G Pushbutton Switch
The Anti-Vandal Short-Body Sealed Pushbutton Switch from the ATPS19 Series offers durable construction with stainless steel bushing and IP67 sealing, making it ideal for safety, security, and industrial applications. It features a momentary SPST contact configuration rated at 2A / 36V DC, with a mechanical life cycle of 1,000,000 cycles and a total travel of 1.8 ± 0.2 mm. The switch includes options for LED illumination in multiple colors, with stainless steel, PC, and brass components for enhanced reliability and sealing against harsh environments.
C&K COMPONENTS ATPS19SL5303M0SA04G Pushbutton Switch Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- MECHANICAL LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 ± 0.2 mm
- OPERATING FORCE: 4.5 ± 1.5 N
- CONTACT RATING: 2A / 36V DC
- ELECTRICAL LIFE: 200,000 cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS
- INSULATION RESISTANCE: 1,000 MΩ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max @ 1A 12VDC
- BUSHING: Stainless steel
- BASE: PA66, white (UL 94-VO)
- ACTUATOR: PC, translucent, standard steel
- INTERNAL ASSEMBLY: PC, transparent
- SPRING: Steel
- SEALING / O-ring: Silicone
- TERMINALS / CONTACT: Brass, gold flash plated / Brass, silver alloy
- HEX NUT: Brass (Nickel plated)
- OPERATING TEMPERATURE: -20°C to +70°C
- SEALING / PROTECTION: IP67
Buy the CK Switches Series ATPS19 Anti-Vandal Pushbutton: ATPS19SL5303M0SA04G
Purchase the CK Switches ATPS19 series anti-vandal sealed pushbutton switch online today. Designed for long-lasting durability, the switch features stainless steel bushing, IP67 sealing, and LED illumination options in multiple colors. Rated at 2A / 36V DC with a mechanical life of 1,000,000 cycles, it is perfect for industrial, safety, and security applications. Easy to install with threaded front panel mounting, this switch offers reliable operation in challenging environments, ensuring safety and efficiency in your equipment and systems.
Get CK Switches ATPS19SL5303M0SA04G today—built for durability, sealed for harsh environments, and ideal for safety and industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS19SL5303M0SA04G?
You can click on the BUY or RFQ button to purchase ATPS19SL5303M0SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS19SL5303M0SA04G?
You can download the ATPS19SL5303M0SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS19SL5303M0SA04G?
C&K COMPONENTS
