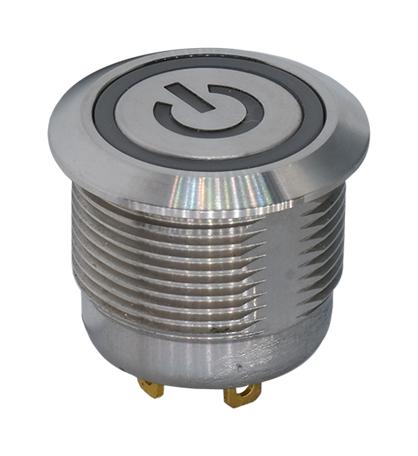

C&K COMPONENTS ATPS19SL5612M4SA04G Industrial Sealed Pushbutton Switch
The ATPS19 series anti-vandal short-body sealed pushbutton switch offers a robust and durable design suitable for industrial environments. Featuring IP67 sealing and IK10 impact resistance with stainless steel bushing, it is designed for safety and security applications such as alarm systems, vending machines, parking stations, and industrial controls. The switch supports momentary operation, N.O. contact configuration, and various LED indicator options. It boasts a mechanical life of 1,000,000 cycles, a contact rating of 2A at 36V DC, and an operating temperature range of -20°C to +70°C, ensuring reliable performance in harsh environments.
C&K COMPONENTS ATPS19SL5612M4SA04G Industrial Sealed Pushbutton Switch Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- Mechanical Life: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 + 0.2 mm
- OPERATING FORCE: 4.5 + 1.5N
- CONTACT RATING: 2A / 36V DC
- ELECTRICAL LIFE: 200,000 cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS @ sea level
- INSULATION RESISTANCE: 1,000 MOQ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max @ 1A 12VDC
- BUSHING: Stainless steel
- BASE: PA66, white (UL 94-VO)
- ACTUATOR: PC, translucent (UL 94-V2), std steel
- INTERNAL ASSEMBLY: PC, transparent (UL 94V2)
- SPRING: Steel
- SEALING / O-ring: Silicone
- TERMINALS / CONTACT: Brass, gold flash plated / Brass, silver alloy
- HEX NUT: Brass (Nickel plated)
- OPERATING TEMPERATURE: -20°C to +70°C
- SEALING / PROTECTION: IP67
Buy the Brand ATPS19 – Reliable Pushbutton Switch for Industrial Applications
Order the ATPS19 series now to ensure dependable, sealed operation for your industrial, security, and vending applications. Featuring a robust stainless steel bushing, IP67 sealing, and a mechanical life of 1,000,000 cycles, these switches are suitable for demanding environments. With various LED indicator options for visual signaling and a contact rating of 2A at 36V DC, they guarantee long-lasting performance. Easy to install with threaded mounting and a temperature range of -20°C to +70°C, these switches are ideal for industrial controls and safety systems. Buy online now for fast delivery and competitive pricing.
Get ATPS19 series pushbutton switch today—built for safety, durability, and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS19SL5612M4SA04G?
You can click on the BUY or RFQ button to purchase ATPS19SL5612M4SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS19SL5612M4SA04G?
You can download the ATPS19SL5612M4SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS19SL5612M4SA04G?
C&K COMPONENTS
