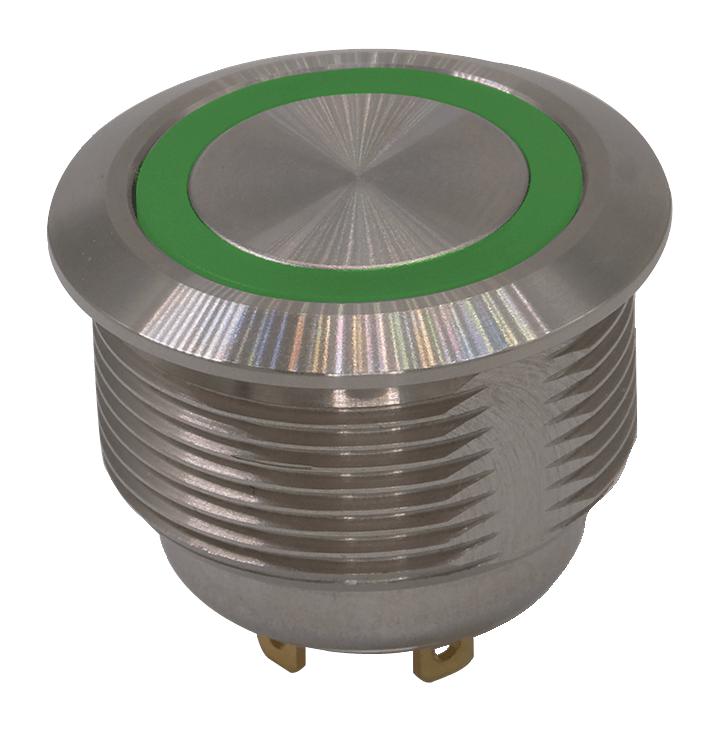

C&K COMPONENTS ATPS22SL0000M0SA04G Industrial Pushbutton Switch
The Anti-Vandal Short-Body Sealed Pushbutton Switch is designed for industrial applications requiring durability and reliability. Featuring IP67 sealing and IK10 resistance with a stainless steel bushing, it offers a momentary contact function rated at 2A/36V DC. The switch endures one million mechanical cycles and is suitable for automation, safety systems, vending machines, and more. Its robust construction includes a PA66 base, PC actuator, and brass terminals, ensuring excellent performance in harsh environments. Available with various LED options and actuator styles, it provides versatile installation and operation safety.
C&K COMPONENTS ATPS22SL0000M0SA04G Industrial Pushbutton Switch Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- MECHANICAL LIFE: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 + 0.2 mm
- OPERATING FORCE: 4.5 + 1.5N
- CONTACT RATING: 2A / 36V DC
- ELECTRICAL LIFE: 200,000 cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS @ sea level
- INSULATION RESISTANCE: 1,000 MOQ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max @ 1A 12VDC
- BUSHING: Stainless steel
- BASE: PA66, white (UL 94-V0)
- ACTUATOR: PC, translucent (UL 94-V2), standard steel
- MATERIAL: Brass, gold flash plated / Brass, silver alloy terminal
- SEALING / O-ring: Silicone
- OPERATING ENVIRONMENT: -20°C to +70°C, IP67 sealing
- MOUNTING TORQUE: 11.5 kgf/cm
Buy the CK Switches ATPS22 – Reliable Industrial Pushbutton for Industrial Applications
Purchase the CK Switches ATPS22 Series anti-vandal sealed pushbutton switch online today for reliable, durable operation in harsh industrial environments. Featuring IP67 sealing, IK10 resistance, stainless steel bushing, and a 2A/36V DC rating, this switch endures one million mechanical cycles. Ideal for automation, safety, vending, and security applications, it offers versatile LED options, momentary contact, and robust construction. Buy now to ensure high performance, safety, and long-lasting operation in demanding industrial projects with fast and secure online access.
Order your CK Switches ATPS22 Series anti-vandal sealed pushbutton switch today and enhance your industrial safety and automation systems with dependable quality.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS22SL0000M0SA04G?
You can click on the BUY or RFQ button to purchase ATPS22SL0000M0SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS22SL0000M0SA04G?
You can download the ATPS22SL0000M0SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS22SL0000M0SA04G?
C&K COMPONENTS
