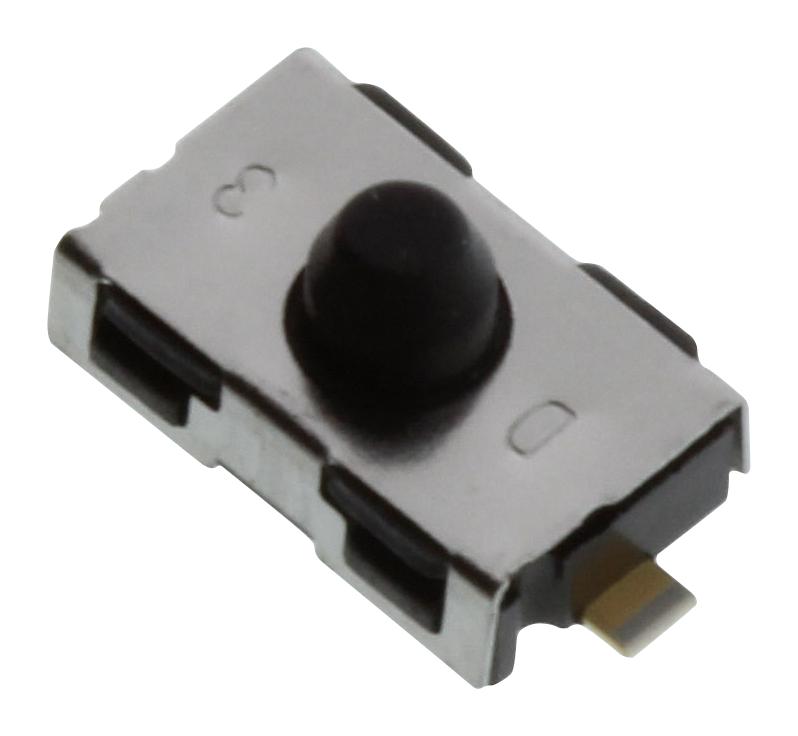

C&K COMPONENTS ATS2D3GNCLFG Anti-Tamper Switch
The ATS Series Anti-Tampering Switches are reliable, normally closed SPST switches designed for security and safety applications such as alarm systems and smart meters. Featuring IP54 protection, a vertical detection function, and a long-lasting build with gold and silver contact options, these switches support a maximum power of 0.2 VA and a voltage of 32 VDC. They are compatible with lead-free reflow soldering, feature gullwing terminals for SMT, and operate across temperatures from -40°C to +125°C, making them ideal for industrial and security environments.
C&K COMPONENTS ATS2D3GNCLFG Anti-Tamper Switch Specifications:
- FUNCTION: Momentary action
- CONTACT TYPE: SPST Normally Closed
- TERMINALS: Gullwing type for SMT
- SWITCHING FORCE: < 2 N
- TRAVEL TO BREAK: 0,7 mm
- TOTAL TRAVEL: 1,1 mm
- MAXIMUM POWER: 0.2 VA (Gold), 1 VA (Silver)
- MAXIMUM VOLTAGE: 32 VDC
- MINIMUM VOLTAGE: 20 mVDC
- MAXIMUM CURRENT: 10 mA (Gold), 50 mA (Silver)
- MINIMUM CURRENT: 1 pA (Gold), 1 mA (Silver)
- CONTACT RESISTANCE: < 350 mΩ
- INSULATION RESISTANCE: > 1 GΩ
- DIELECTRIC STRENGTH: > 250 V RMS
- OPERATING TEMPERATURE: -40°C to +125°C
- STORAGE TEMPERATURE: -55°C to +125°C
- SOLDERING: Compatible with lead-free reflow process
Buy the Buy ATS Series Anti-Tampering Switch Part Number ATS2D3GNCLFG Online
Secure your projects with the ATS Series Anti-Tampering Switch, offering reliable normally closed operation, IP54 protection, and compatibility with lead-free reflow soldering. These switches excel in alarm systems, smart meters, and security applications, providing a long-lasting, protective, and sensitive detection solution with gold and silver contact options. Easy to integrate with gullwing SMT terminals, they operate from -40°C to +125°C and support high insulation resistance. Order online now for quick shipping and dependable performance in your security and industrial setups.
Order your ATS Series anti-tampering switch ATS2D3GNCLFG today and enhance your security systems with high reliability and long-lasting performance.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATS2D3GNCLFG?
You can click on the BUY or RFQ button to purchase ATS2D3GNCLFG from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATS2D3GNCLFG?
You can download the ATS2D3GNCLFG datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATS2D3GNCLFG?
C&K COMPONENTS
