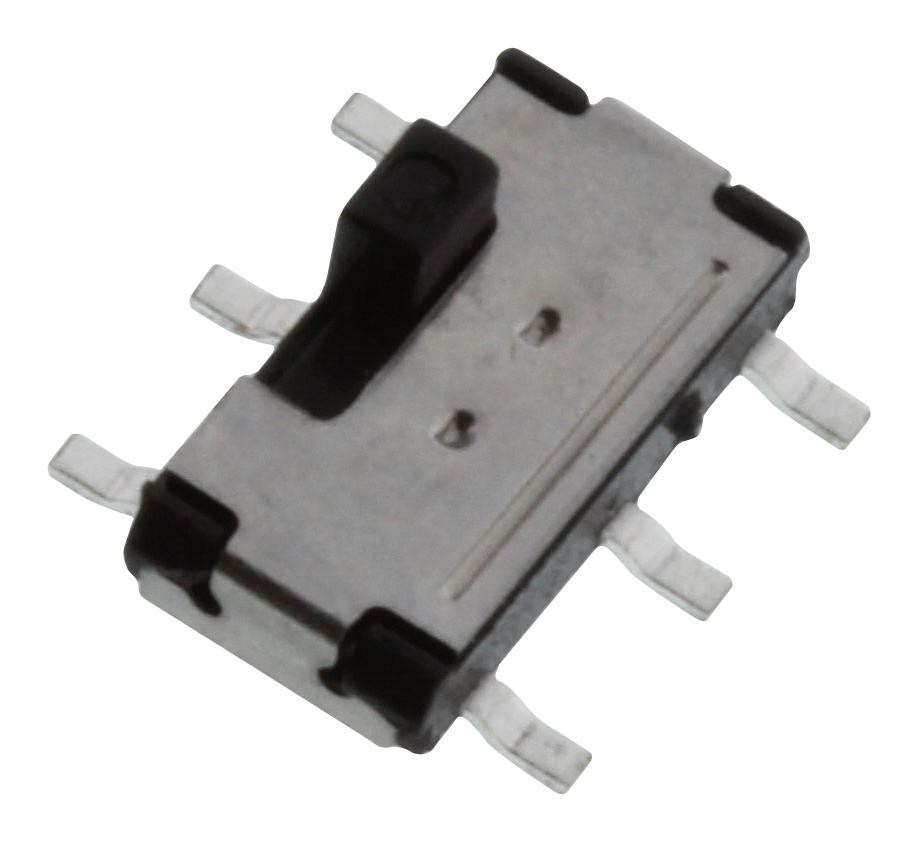

C&K COMPONENTS AYZ0202AGRLC Miniature Slide Switch
AYZ Series miniature slide switches are compact, RoHS-compatible components designed for low-voltage, low-current applications in computer peripherals, telecommunication devices, and measurement equipment. They feature a low profile housing made of glass filled nylon with nickel silver covers, silver-plated contacts, and a mechanical life of 10,000 operations. These switches support maximum voltages of 12 VDC and currents of 100 mA, with insulation resistance exceeding 10^8 ohms, making them reliable for demanding electronic controls and interface systems.
C&K COMPONENTS AYZ0202AGRLC Miniature Slide Switch Specifications:
- Housing: Glass filled nylon 4/6 (UL 94V-0)
- Actuator: Glass filled nylon 6/6 (UL 94V-0), options ending in C are nylon 4/6
- Cover: Nickel silver
- Movable Contact: Copper alloy, silver plated
- Fixed Contact: Brass, silver plated
- Contact Spring: Contact bronze
- Max. Switching Voltage: 12 VDC
- Max. Switching Current: 100 mA
- Mechanical Life: 10,000 operations
- Contact Resistance: <80 mΩ
- Insulation Resistance: >10^8 ohms
- Dielectric Strength: 0.1 kV at 50 Hz for 1 min
- Operating Temperature: -10°C to +60°C
- RoHS compliant
- Mounting: PC board, tape & reel packaging
- Dimensions: Compact size with typical length around 4.0 mm
Buy the Buy Industrial Equipment Miniature Slide Switches Part Number AYZ0202AGRLC Online
Discover the reliability of AYZ Series miniature slide switches. Featuring RoHS compliance, compact design, and high durability, these switches support 12V DC and 100mA currents. Ideal for telecom, computing, and measurement devices, they offer a mechanical life of 10,000 operations and excellent resistance properties. Their robust housing and high-quality contacts ensure consistent operation, making them perfect for OEM solutions requiring precise, reliable switching performance on PC boards. Shop online today for fast, secure delivery of these essential control components.
Buy AYZ Series miniature slide switch AYZ0202AGRLC now and experience reliable performance in low-voltage, durable control applications.
