C&K COMPONENTS BPA01B DIP Switch
The BPA Series Side Actuated DIP Switches are compact, reliable switching components ideal for industrial control, computer, and peripheral applications. They feature side actuated contacts, high-pressure contact systems, and are RoHS compliant. Available in various positions from 1 to 12, with options for thru-hole or SMB/SMD mounting, these switches support high cycle life of at least 1,000 cycles. Made with durable plastic and metal contact materials, they provide a maximum contact rating of 100 mA at 5 V DC, suitable for logic and address switching in harsh environments.
C&K COMPONENTS BPA01B DIP Switch Specifications:
- Switch Function: 1 to 12 positions available
- Contact Rating: 100 mA max. @ 5 V DC or 25 mA max. @ 24 V DC
- Materials: Housing - PPS, Contacts - Beryllium Copper with Gold over Nickel
- Mechanical and Electrical Life: Minimum 1,000 cycles
- Contact Resistance: 50 milliohms initial max
- Insulation Resistance: 100 megohms min at 100 V DC
- Dielectric Withstand Voltage: 300 V AC for 1 minute
- Operating Force: Max. 800 grams
- Solderability: Flow solderable, washable
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -20°C to 85°C

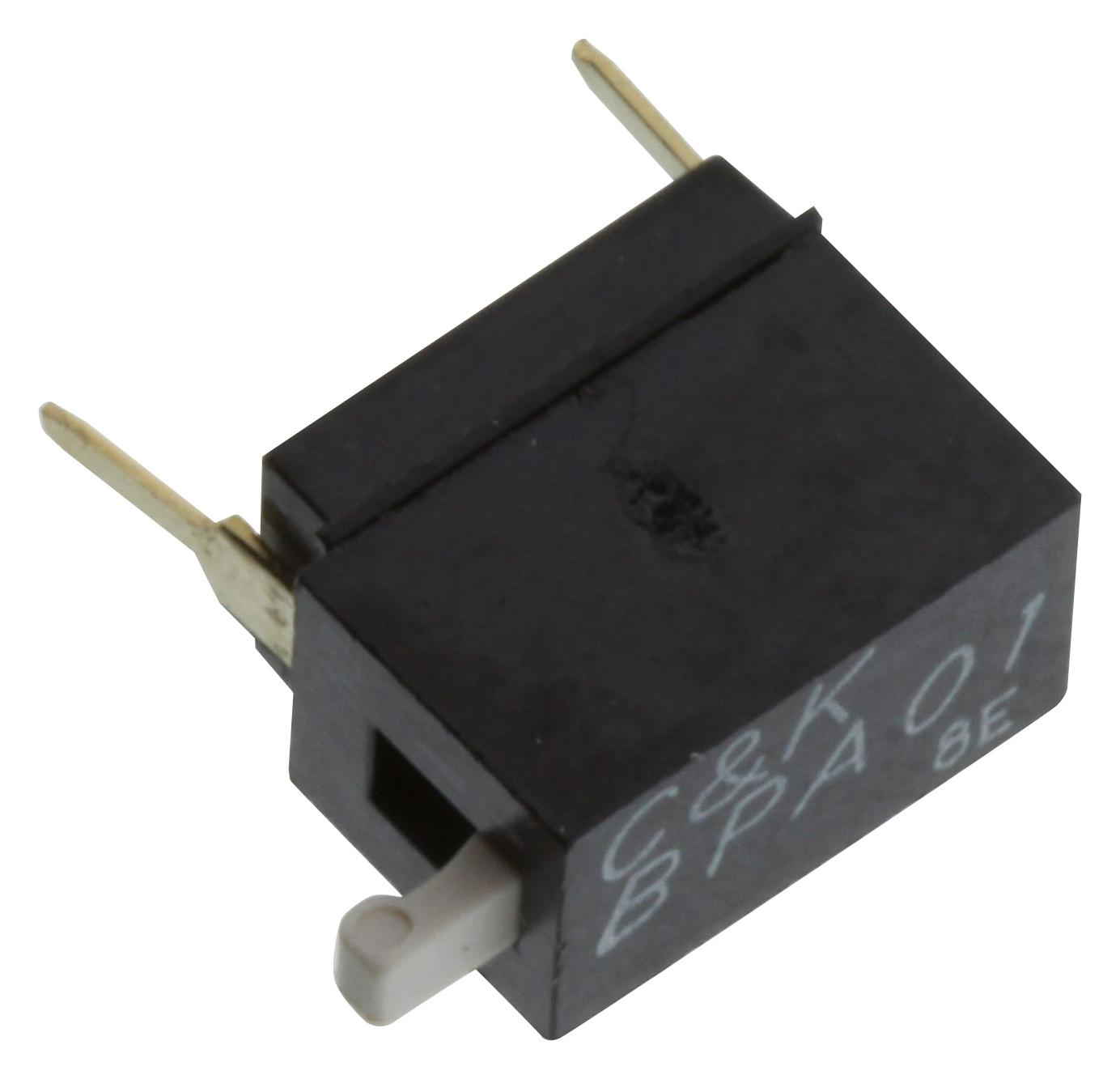

Buy the Buy C&K BPA Series Side Actuated DIP Switches Part Number BPA01B Online
Order the C&K BPA01B DIP switch online today to ensure high-quality switching for industrial controls, computing, and peripheral devices. Designed for durability and ease of installation, this switch features a high cycle life and multiple configurations suitable for address and logic switching. RoHS compliant and made with durable materials, it guarantees reliable operation in harsh environments. Enhance your projects with a proven, compact, and easy-to-use DIP switch—order now for quick delivery and unmatched performance.
Buy C&K BPA01B side actuated DIP switch now and experience reliable switching performance for industrial and electronics applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS BPA01B?
You can click on the BUY or RFQ button to purchase BPA01B from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part BPA01B?
You can download the BPA01B datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of BPA01B?
C&K COMPONENTS
