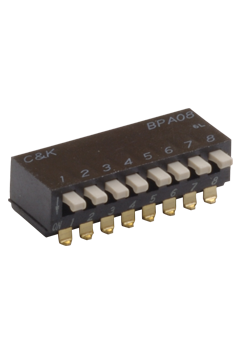

C&K COMPONENTS BPA07SBR Side Actuated DIP Switch
The C&K BPA Series Side Actuated DIP Switches offer a versatile solution for switching applications. These switches feature side actuation for easy access and a high-pressure contact system that eliminates the need for tape seals during washing. Available in various configurations, including thru-hole and surface mount options, they are ideal for address switching in industrial controls, logic switching in computers and peripherals, and function controlling in numerous applications. The BPA07SBR specifically offers 7 positions and utilizes PPS housing with gold-plated contacts for reliable performance.
C&K COMPONENTS BPA07SBR Side Actuated DIP Switch Specifications:
- Switch Function: 1 thru 10 and 12 position available
- Contact Rating: 100 mA max. @ 5 V DC or 25 mA max. @ 24 V DC
- Mechanical and Electrical Life: 1,000 cycles min. @ 5 V DC 10mA
- Contact Resistance: 50 milliohms initial max.
- Insulation Resistance: 100 V DC 100 megohms min.
- Dielectric Withstand Voltage: 300 V AC for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -20°C to 85°C
- Operating Force: 800 grams max.
- Housing Material: PPS, color black (UL94V-0)
- Cover Material: PPS, color black (UL94V-0)
- Actuator Material: PA-6T (UL94V-0)
- Contact Material: Beryllium Copper with Gold over Nickel plate
- Terminal Material: Brass, Gold over Nickel plate
- Solderability: Flow solderable and washable (soldering: 260°C for 10 sec. max.)
