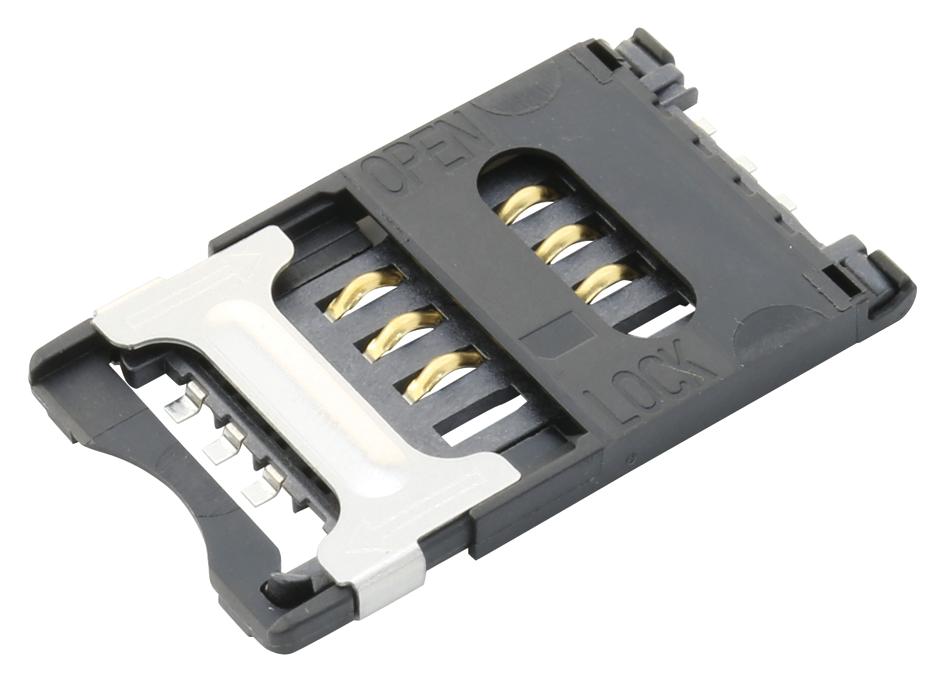

C&K COMPONENTS CCM033009LFTR102 Microsim Card
The CCMO3 Series Microsim Cards are compact, reliable cards designed for handheld devices, identification systems, POS terminals, and automotive applications. These cards accept SIM/SAM modules with hinged or fixed covers, suitable for reflow and lead-free soldering processes. They feature durable contact switches rated for thousands of cycles, with excellent insulation resistance and dielectric strength. The cards are RoHS compliant, operate within -40°C to +85°C, and support high power and durability standards, making them ideal for secure, portable data exchange and communication tasks.
C&K COMPONENTS CCM033009LFTR102 Microsim Card Specifications:
- Number of contacts: 6 or 8
- Mechanical life: Hinged cover 10,000 cycles min, Fixed cover 50,000 cycles
- Card insertion force: 0.25N min / 0.50N max
- Card extraction force: 0.80N min / 3N max
- Switch resistance: 100 mΩ max
- Dielectric strength: 750 Vrms min
- Insulation resistance: 1,000 MΩ min
- Operating temperature: -40°C to +85°C
- Contact resistance: 2 mΩ max
- RoHS compliant, suitable for lead-free SMT soldering
- Maximum power: 0.2VA, Current rating: 10 pA min / 1A max
- Vibration frequency: 10 to 500 Hz, Shock: 3 shocks in each axis
Buy the Cak Series Microsim Card: CCM033009LFTR102
Enhance your communication and identification solutions with the Cak Series Microsim Card. Designed for reliable SIM and SAM acceptance, these cards feature durable switches rated for up to 50,000 cycles. Compatible with reflow and lead-free soldering, they operate across a wide temperature range of -40°C to +85°C. RoHS compliant and engineered for high power and excellent insulation, they are ideal for handheld devices, POS systems, and automotive applications. Purchase online now for robust performance and seamless integration in your portable electronics.
Get Cak CCM033009LFTR102 Microsim Card today—built for precision, durability, and reliable SIM/SAM acceptance in compact designs.
