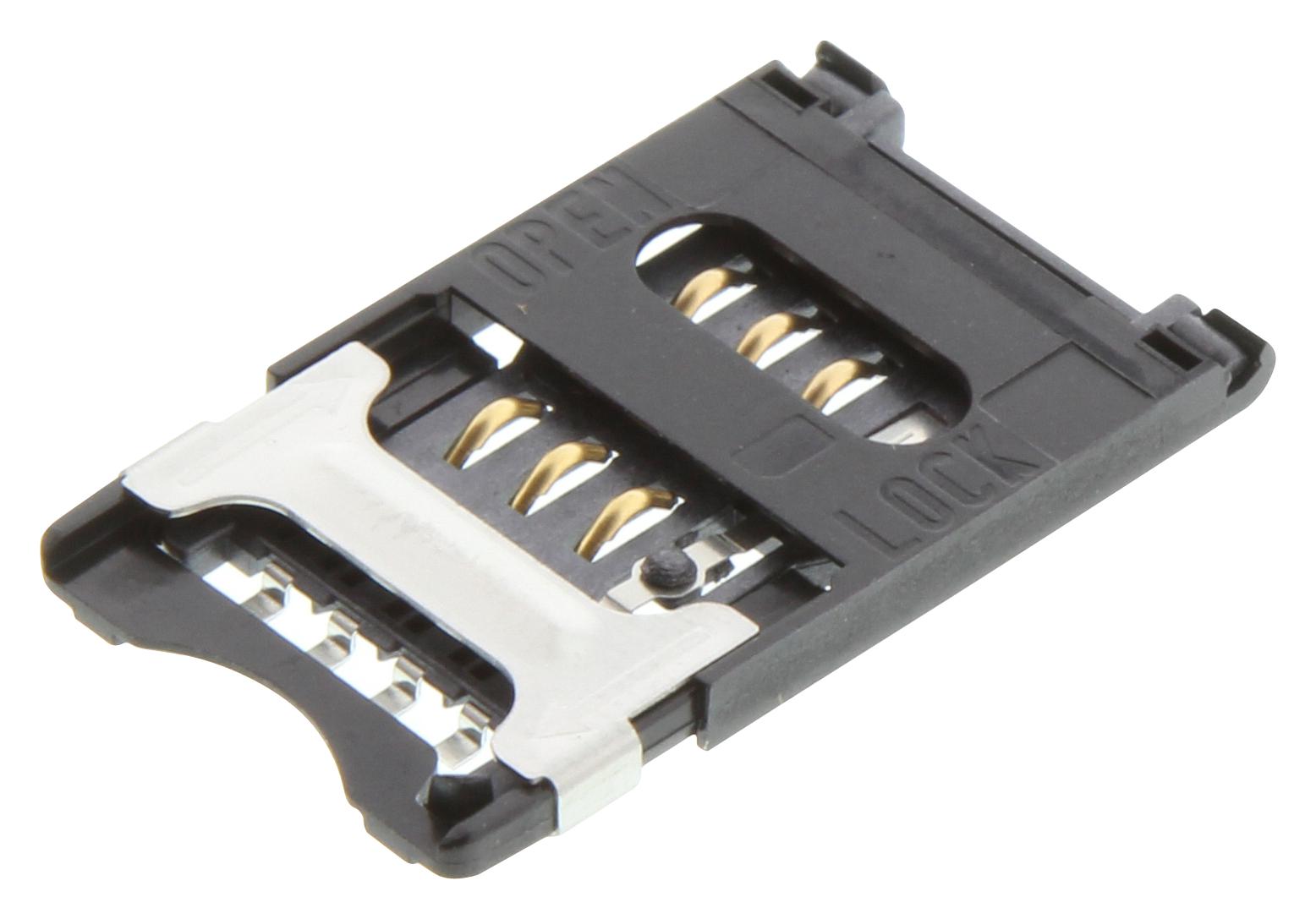

C&K COMPONENTS CCM033013LFTR102 MicroSIM Card Switch
The CCM03 series features SIM and SAM card acceptance, compatible with pick and place and lead-free soldering processes. Designed for handheld products, identification, and automotive use, these card detection switches include hinged and fixed covers, with contact resistance of up to 100 mΩ, dielectric strength of at least 250 Vrms, and an operating temperature range from -40°C to +85°C. Available in variants with 6 or 8 contacts, they offer mechanical life up to 50,000 cycles, with robust shock and vibration resistance, suitable for modern electronic and mobile device applications, ensuring reliable card detection and switching performance.
C&K COMPONENTS CCM033013LFTR102 MicroSIM Card Switch Specifications:
- Number of contacts: 6 or 8
- Mechanical life: 30,000 to 50,000 cycles
- Card insertion force: Hinged cover max 10N, Fixed cover max 10N
- Card extraction force: 1N min / 10N max
- Contact resistance: up to 100 mΩ
- Dielectric strength: 250 Vrms min
- Insulation resistance: 1,000 MΩ min
- Operating temperature: -40°C to +85°C
- Shock: 10 to 500 Hz, 50 m/s², 6 hours, amplitude 0.35 mm
- Vibration: 10 to 500 Hz, 0.35 mm, 3 shocks each axis
- RoHS compliant
- Compatible with lead-free SMT soldering process
Buy the Buy CK Components CCM03-3012LFTR102 Online
Order the CK Components CCM03-3012LFTR102 microSIM card switch today and ensure reliable card detection for mobile devices, POS systems, and identification applications. Designed with robust contacts, high mechanical life, and RoHS compliance, this switch offers exceptional durability and performance. Ideal for automated assembly and reflow soldering, it guarantees consistent operation in various environmental conditions. Enhance your electronic designs with this high-quality, compact switch that combines reliability, compatibility, and easy integration for modern electronic systems.
Get CK Components CCM03-3012LFTR102 today—built for precision and long-lasting durability in card detection switches.
Frequently Asked Questions
Where can I buy C&K COMPONENTS CCM033013LFTR102?
You can click on the BUY or RFQ button to purchase CCM033013LFTR102 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part CCM033013LFTR102?
You can download the CCM033013LFTR102 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of CCM033013LFTR102?
C&K COMPONENTS
