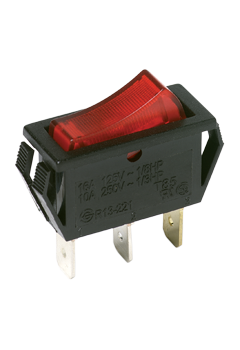

C&K COMPONENTS CM102J12S205QA Single Pole Rocker Switch
The C&K COMPONENTS CM102J12S205QA is a robust single-pole power rocker switch ideal for a wide range of applications. Its snap-in design simplifies installation, while the multiple actuator and termination styles offer flexibility in design. Constructed with durable 6/6 nylon housing and silver-plated copper alloy contacts, this switch provides reliable performance. It is RoHS compliant and suitable for use in computers, power supplies, industrial equipment, and small appliances. Available with illuminated options and various actuator markings, the CM102J12S205QA offers a versatile solution for power control needs.
C&K COMPONENTS CM102J12S205QA Single Pole Rocker Switch Specifications:
- Contact Rating: 16 AMPS @ 125 VAC, 1/8 HP; 10 AMPS @ 250 VAC, 1/3 HP
- Electrical Life: 10,000 make and break cycles at full load
- Insulation Resistance: 10[8] Ω min
- Dielectric Strength: 1,500 VRMS @ sea level
- Housing and Actuator: 6/6 nylon (UL94V-2), black, gloss or matte finish
- Illuminated Actuator: Polycarbonate, gloss or matte finish
- Center Contacts: Silver plated, copper alloy
- End Contacts: Silver plated
- All Terminals: Silver plated, copper alloy
- Operating Temperature: -20ºC to +80ºC
- Actuator Marking: No marking, ON-OFF, International ON-OFF
- Lamp Rating: 125 VAC 33kΩ NEON, 250 VAC 150kΩ NEON
