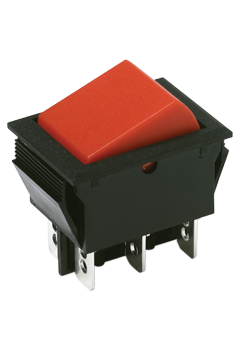

C&K COMPONENTS CN201J11S215Q Double Pole Power Rocker Switch
The C&K COMPONENTS CN201J11S215Q is a double pole power rocker switch engineered for reliable performance in a wide range of applications. This switch boasts a robust design, offering durability and longevity. It provides multiple actuator and termination style options to accommodate diverse design requirements. The switch is RoHS compliant, meeting environmental standards. Typical applications include appliances, office equipment, computers and peripherals, off-road vehicles, industrial machines, HVAC units, and transportation systems. Consult the Customer Service Center for custom versions and specific switch configurations.
C&K COMPONENTS CN201J11S215Q Double Pole Power Rocker Switch Specifications:
- contact_rating: See table on last page for Q and QA ratings
- electrical_life: 10,000 make and break cycles at full load
- insulation_resistance: 10Ω min
- dielectric_strength: 1,500 VRMS @ sea level
- operating_temperature: -20ºC to +85ºC
- housing_and_actuator: 6/6 nylon (UL94V-2), black, matte finish
- illuminated_actuator: Polycarbonate, matte finish
- center_contacts: Silver plated, copper alloy
- end_contacts: Silver plated AgSu02ln03
- all_terminals: Silver plated, copper alloy
- switch_function: CN201 DPDT On-None-On
- termination_options: {'.187” quick connect': '15', '.250” quick connect': '05'}
- actuator_marking_options: {'NONE': 'No marking', 'D': 'ON-OFF', 'H': 'O l - international ON-OFF', 'P': 'O - international ON-OFF'}
- contact_material_options: {'Q': 'Silver (Power)', 'QA': 'Silver (with HP rating)'}
- lamp_rating_options: {'NONE': 'No lamp', '7': '125 VAC neon', '8': '250 VAC neon'}
