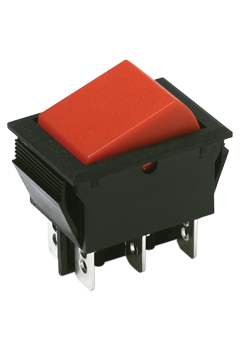

C&K COMPONENTS CN202J3GS215Q7 Double Pole Power Rocker Switch
The C&K COMPONENTS CN202J3GS215Q7 is a double pole power rocker switch engineered for durability and versatility. Its robust design and multiple actuator and termination styles make it suitable for a wide range of applications, from appliances and office equipment to computers, off-road vehicles, and industrial machines. The switch is RoHS compliant, ensuring environmental responsibility. Available with various options for actuator color, mounting style, and termination, the CN202J3GS215Q7 provides a customizable solution for diverse electrical switching needs. Contact ratings vary, consult the datasheet for specific values.
C&K COMPONENTS CN202J3GS215Q7 Double Pole Power Rocker Switch Specifications:
- contact_rating: See table on last page for Q and QA ratings
- electrical_life: 10,000 make and break cycles at full load
- insulation_resistance: 10\^8 Ω min.
- dielectric_strength: 1,500 VRMS @ sea level
- operating_temperature: -20ºC to +85ºC
- housing_and_actuator: 6/6 nylon (UL94V-2), black, matte finish
- illuminated_actuator: Polycarbonate, matte finish
- center_contacts: Silver plated, copper alloy
- end_contacts: Silver plated AgSu02ln03
- all_terminals: Silver plated, copper alloy
- switch_function: CN202 DPST On-None-Off
- actuator_color_options: {'2': 'Black', '1': 'White', '3': 'Red', 'R': 'Red, illuminated', 'A': 'Amber, illuminated', 'G': 'Green, illuminated'}
- mounting_style_options: {'S2': 'Snap-in, black', 'S1': 'Snap-in, white', 'S4': 'Snap-in, black', 'S3': 'Snap-in, white'}
- termination_options: {'15': '.187” quick connect', '05': '.250” quick connect'}
- actuator_marking_options: {'NONE': 'No marking', 'D': 'ON-OFF', 'H': 'O l', 'P': 'O -'}
- contact_material_options: {'Q': 'Silver (Power)', 'QA': 'Silver (with HP rating)'}
- lamp_rating_options: {'NONE': 'No lamp', '7': '125 VAC neon', '8': '250 VAC neon'}
