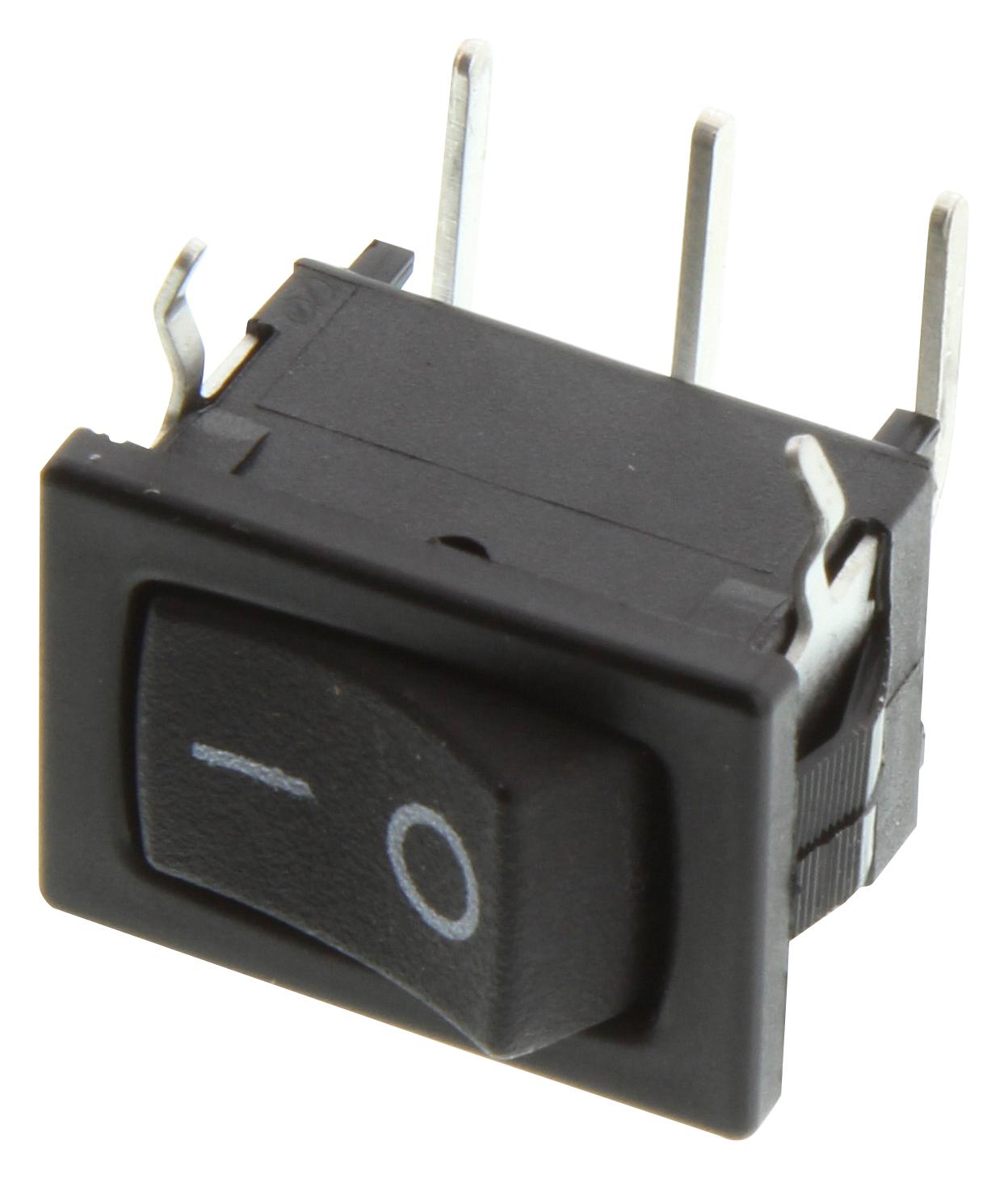

C&K COMPONENTS D501J12S2APQA Miniature Power Rocker Switch
The C&K COMPONENTS D501J12S2APQA is a miniature snap-in power rocker switch offering versatility and reliability in a compact design. Available in momentary and maintained configurations, it caters to diverse application needs. The switch features PC and quick connect terminals for flexible integration, and a recessed bracket option enhances safety by preventing accidental actuation. Constructed with durable materials like nylon and silver-plated copper, it ensures long-lasting performance. Ideal for small appliances, computers, and medical instrumentation, the D501J12S2APQA provides a robust and user-friendly switching solution.
C&K COMPONENTS D501J12S2APQA Miniature Power Rocker Switch Specifications:
- Contact Rating: 4 AMPS 125 VAC 50/60 Hz T85 10,000 cycles, 2 AMPS 250 VAC 50/60 Hz T85 10,000 cycles
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Actuator Housing: 6/6 nylon (UL 94V-2), color black, finish: matte
- Movable Contacts: Copper, silver plated (D10X and D20X Models), Coin silver, silver plated (D50X and D60X Models)
- Stationary Contacts and Terminals: Copper or brass, silver plated
- Contact Spring: Music wire or stainless steel
- Operating Temperature: -30ºC to +65ºC
Buy the D501J12S2APQA C&K COMPONENTS Miniature Power Rocker Switch | myMectronic
Purchase the C&K COMPONENTS D501J12S2APQA securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS D501J12S2APQA?
You can click on the BUY or RFQ button to purchase D501J12S2APQA from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D501J12S2APQA?
You can download the D501J12S2APQA datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of D501J12S2APQA?
C&K COMPONENTS
