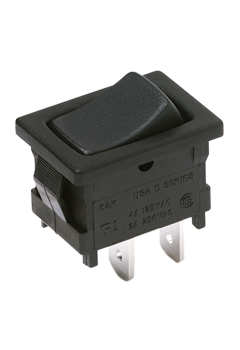

C&K COMPONENTS D502J12B215PQA Miniature Power Rocker Switch
The C&K COMPONENTS D502J12B215PQA is a miniature snap-in power rocker switch suitable for small appliances, computers, medical instrumentation, and other applications requiring a compact and reliable switching solution. Available in momentary and maintained configurations, it offers versatility in circuit design. The switch features PC and quick connect terminals for easy integration, and a recessed bracket option enhances safety by preventing accidental actuation. Constructed with durable materials like nylon and silver-plated copper, it ensures long-term performance and reliability. Gold plating options are available for enhanced conductivity and corrosion resistance.
C&K COMPONENTS D502J12B215PQA Miniature Power Rocker Switch Specifications:
- Contact Rating: 4 AMPS 125 VAC 50/60 Hz T85 10,000 cycles, 2 AMPS 250 VAC 50/60 Hz T85 10,000 cycles, 4 AMPS 30 VDC T85 10,000 cycles, 10 AMPS 125 VAC 50/60 Hz T85 10,000 cycles, 5 AMPS 250 VAC 50/60 Hz T85 10,000 cycles, 10 AMPS 30 VDC T85 10,000 cycles
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Actuator and Housing: 6/6 nylon (UL 94V-2), color black, finish: matte
- Movable Contacts: D10X and D20X Models: Copper, silver plated. D50X and D60X Models: Coin silver, silver plated
- Stationary Contacts and Terminals: Copper or brass, silver plated. Gold plating available
- Contact Spring: Music wire or stainless steel
- Operating Temperature: -30ºC to +65ºC
Buy the D502J12B215PQA C&K COMPONENTS Miniature Power Rocker Switch | myMectronic
Purchase the C&K COMPONENTS D502J12B215PQA securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS D502J12B215PQA?
You can click on the BUY or RFQ button to purchase D502J12B215PQA from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D502J12B215PQA?
You can download the D502J12B215PQA datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of D502J12B215PQA?
C&K COMPONENTS
