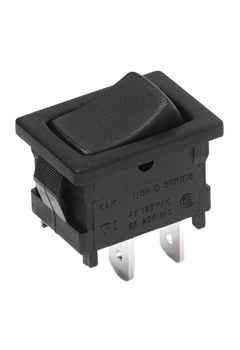

C&K COMPONENTS D502J17S215NQA Miniature Power Rocker Switch
The C&K Components D502J17S215NQA is a miniature snap-in power rocker switch suitable for small appliances, computers, medical instrumentation, and other applications requiring a compact and reliable switching solution. Available in momentary and maintained configurations, it offers versatility in circuit design. The switch features PC and quick connect terminals for easy integration, and a recessed bracket option is available to prevent accidental actuation. It is RoHS compliant, ensuring environmental responsibility. Gold plating options are available for enhanced conductivity and durability.
C&K COMPONENTS D502J17S215NQA Miniature Power Rocker Switch Specifications:
- Contact Rating: 4 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 4 AMPS 30 VDC, 10 AMPS 125 VAC 50/60 Hz, 5 AMPS 250 VAC 50/60 Hz, 10 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Actuator & Housing: 6/6 nylon (UL 94V-2), color black, finish: matte
- Movable Contacts: Copper, silver plated (D10X and D20X Models), Coin silver, silver plated (D50X and D60X Models)
- Stationary Contacts and Terminals: Copper or brass, silver plated, Gold plating available
- Contact Spring: Music wire or stainless steel
- Operating Temperature: -30ºC to +65ºC
- Switch Function: SPDT, On-None-On, SPST, On-None-Off, DPDT, On-Off-On, SPDT, Mom.-Off-Mom., SPDT, Mom.-None-On
