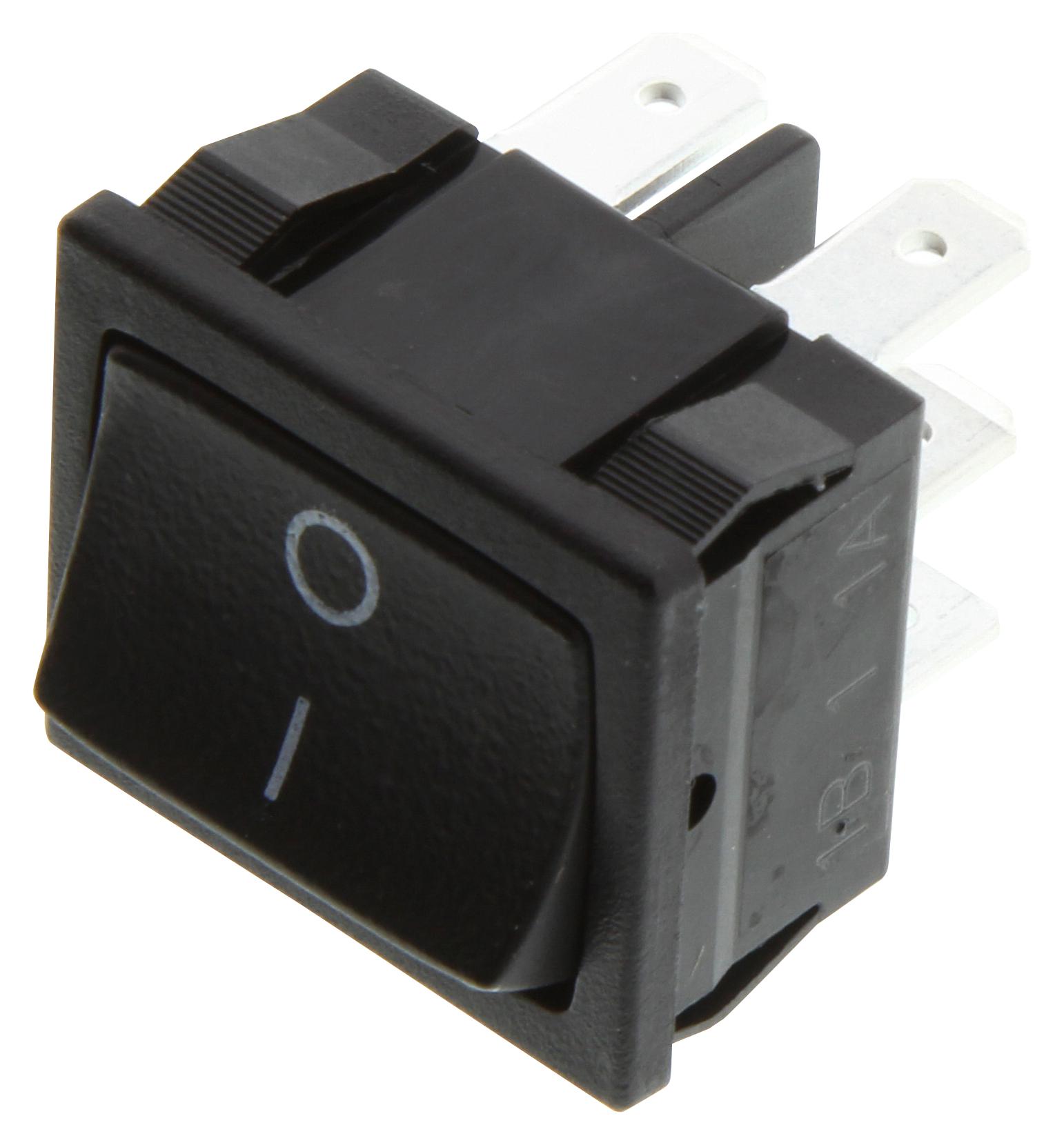

C&K COMPONENTS D601J12S215PQA Miniature Power Rocker Switch
The C&K COMPONENTS D601J12S215PQA is a miniature snap-in power rocker switch offering a compact and reliable solution for power control in diverse applications. Available in momentary and maintained configurations, this switch provides flexibility for different operational needs. It features PC and quick connect terminals for easy integration into various systems. Constructed with durable materials like nylon and silver-plated copper, the D601J12S215PQA ensures long-lasting performance. It is RoHS compliant, meeting environmental standards. Typical applications include small appliances, computers, medical instrumentation, and more.
C&K COMPONENTS D601J12S215PQA Miniature Power Rocker Switch Specifications:
- Contact Rating: 4 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 4 AMPS 30 VDC, 10 AMPS 125 VAC 50/60 Hz, 5 AMPS 250 VAC 50/60 Hz, 10 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Actuator & Housing: 6/6 nylon (UL 94V-2), color black, finish: matte
- Movable Contacts: Copper, silver plated (D10X and D20X Models), Coin silver, silver plated (D50X and D60X Models)
- Stationary Contacts and Terminals: Copper or brass, silver plated, Gold plating available
- Contact Spring: Music wire or stainless steel
- Operating Temperature: -30ºC to +65ºC
Buy the D601J12S215PQA C&K COMPONENTS Miniature Power Rocker Switch | myMectronic
Purchase the C&K COMPONENTS D601J12S215PQA securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS D601J12S215PQA?
You can click on the BUY or RFQ button to purchase D601J12S215PQA from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part D601J12S215PQA?
You can download the D601J12S215PQA datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of D601J12S215PQA?
C&K COMPONENTS
