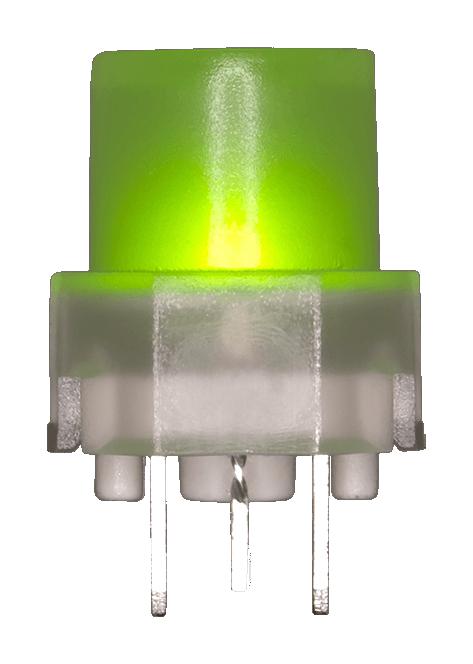

C&K COMPONENTS D6R00F2LFS SPST Momentary Key Switch
The C&K D6R00 F2 LFS is a versatile SPST momentary key switch designed for ease of integration and reliable performance. Its features include easy X, Y coding on a single-sided PCB, providing flexibility in circuit design. The switch delivers positive and smooth tactile feedback, enhancing the user experience. It is RoHS compliant and available in a variety of colors and styles, including illuminated versions. Typical applications include video games, appliances, and other electronic devices requiring a momentary contact solution. The switch offers switching power up to 3 VA and a maximum switching voltage of 32 V DC, with an operating life of up to 250,000 operations depending on the version (F1 or F2).
C&K COMPONENTS D6R00F2LFS SPST Momentary Key Switch Specifications:
- Function: momentary
- Contact Arrangement: 1 make
- Distance Between Button Centers: 12.7 mm (0.500)
- Terminal Type: PC pins
- Switching Power Max: 3 VA (Non-Illuminated) / 0.35 VA (Illuminated)
- Switching Voltage Max: 32 V DC (Non-Illuminated) / 35 V DC (Illuminated)
- Switching Current Max: 100 mA DC (Non-Illuminated) / 10 mA DC (Illuminated)
- Operating Life: Version F1: 250,000 operations (Non-Illuminated) / 100,000 operations (Illuminated), Version F2: 100,000 operations (Non-Illuminated) / 30,000 operations (Illuminated)
- Contact Resistance: ≤100 mΩ (Non-Illuminated) / ≤200 mΩ (Illuminated)
- Dielectric Strength: 250 V (50 Hz / 1 min)
- Insulation Resistance: ≥108Ω
- Bounce Time: ≤10 ms
- Switching Travel (F1): 0.2 mm ≤ Te ≤ 1.0 mm (Non-Illuminated) / 0.4 mm ≤ Te ≤ 0.8 mm (Illuminated)
- Switching Travel (F2): 0.3 mm ≤ Te ≤ 1.1 mm (Non-Illuminated) / 0.4 mm ≤ Te ≤ 0.8 mm (Illuminated)
- Operating Force (F1): 0.8N ≤ Fa ≤ 1.8N (Non-Illuminated) / 0.8N ≤ Fa ≤ 1.8N (Illuminated)
- Operating Force (F2): 2.0N ≤ Fa ≤ 3.5N (Non-Illuminated) / 1.5N ≤ Fa ≤ 2.5N (Illuminated)
- Sealing: IP40
- Operating Temperature: -20˚C to 85˚C (Non-Illuminated) / -20˚C to 60˚C (Illuminated)
- Solderability: Wave soldering (lead-free compatible), Hand soldering (350˚C for 3 seconds)
- Packaging: Boxes containing 10 trays with 250 pieces each (2,500 pieces per box)
