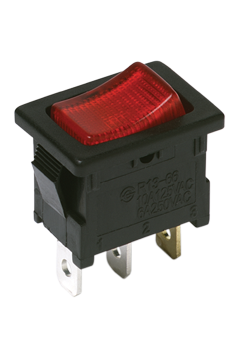

C&K COMPONENTS DA102J12S215DQF Miniature Rocker Switch
The C&K DA102J12S215DQF is a miniature single-pole rocker switch designed for versatility and compact integration. It offers a range of actuator styles and functions, including momentary and maintained options, and is available with an IP65 splash-proof rubber boot. Constructed with durable materials like 6/6 nylon and silver-plated copper alloy, this switch provides reliable performance in applications such as small appliances, computers, and medical instrumentation. Its RoHS compliance ensures environmental responsibility, making it a suitable choice for modern designs.
C&K COMPONENTS DA102J12S215DQF Miniature Rocker Switch Specifications:
- Contact Rating: 16 AMPS @ 125 VAC, 1/3 HP; 10 AMPS @ 250 VAC, 1/2 HP. 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC
- Housing and Actuator: 6/6 nylon (UL94V-2), black, matte finish
- Illuminated Actuator: Polycarbonate, matte finish
- Center Contacts: Silver plated, copper alloy
- End Contacts: Silver plated
- All Terminals: Silver plated, copper alloy
- Electrical Life: 10,000 make and break cycles at full load
- Insulation Resistance: 10[8] Ω min
- Dielectric Strength: 1,500 VRMS @ sea level
- Operating Temperature: -20ºC to +85ºC
Buy the DA102J12S215DQF C&K COMPONENTS Miniature Rocker Switch | myMectronic
Purchase the C&K DA102J12S215DQF securely and efficiently for your commercial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS DA102J12S215DQF?
You can click on the BUY or RFQ button to purchase DA102J12S215DQF from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part DA102J12S215DQF?
You can download the DA102J12S215DQF datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of DA102J12S215DQF?
C&K COMPONENTS
