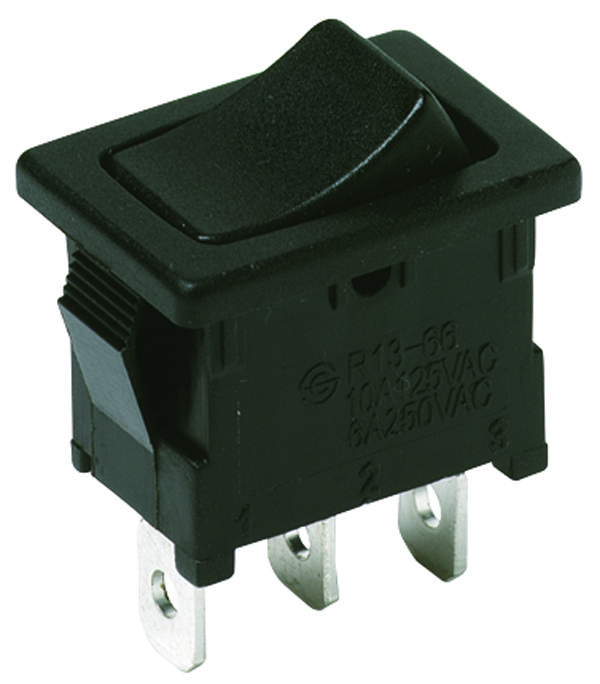

C&K COMPONENTS DA102J12S215PQF Miniature Rocker Switch
The C&K DA102J12S215PQF is a miniature single-pole rocker switch designed for a wide range of applications. Its small size and versatile actuator options make it suitable for space-constrained environments. The switch is RoHS compliant, ensuring environmental responsibility. Typical applications include small appliances, computers and peripherals, and medical instrumentation. It offers both momentary and maintained functions, and an IP65 splash proof rubber boot option is available. The housing and actuator are constructed from 6/6 nylon (UL94V-2), while the contacts are silver-plated copper alloy, providing reliable electrical performance.
C&K COMPONENTS DA102J12S215PQF Miniature Rocker Switch Specifications:
- Contact Rating: 16 AMPS @ 125 VAC, 1/3 HP; 10 AMPS @ 250 VAC, 1/2 HP. 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC
- Housing and Actuator: 6/6 nylon (UL94V-2), black, matte finish
- Illuminated Actuator: Polycarbonate, matte finish
- Center Contacts: Silver plated, copper alloy
- End Contacts: Silver plated
- All Terminals: Silver plated, copper alloy
- Electrical Life: 10,000 make and break cycles at full load
- Insulation Resistance: 10[8] Ω min
- Dielectric Strength: 1,500 VRMS @ sea level
- Operating Temperature: -20ºC to +85ºC
Buy the DA102J12S215PQF C&K COMPONENTS Miniature Rocker Switch | myMectronic
Securely purchase the C&K DA102J12S215PQF online for all your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS DA102J12S215PQF?
You can click on the BUY or RFQ button to purchase DA102J12S215PQF from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part DA102J12S215PQF?
You can download the DA102J12S215PQF datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of DA102J12S215PQF?
C&K COMPONENTS
