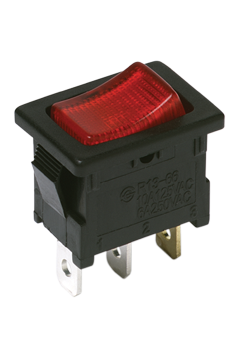

C&K COMPONENTS DA103J12S217QF Miniature Rocker Switch
The C&K DA103J12S217QF is a miniature single-pole rocker switch suitable for a wide range of applications including small appliances, computers, and medical instrumentation. Constructed with a durable 6/6 nylon housing and silver-plated copper alloy contacts, this switch provides reliable performance. It offers both momentary and maintained functions, along with optional illuminated actuators and splash-proof rubber boots. The switch is RoHS compliant and designed for easy integration into various systems, offering a compact and versatile solution for switching needs.
C&K COMPONENTS DA103J12S217QF Miniature Rocker Switch Specifications:
- Contact Rating: 16 AMPS @ 125 VAC, 1/3 HP; 10 AMPS @ 250 VAC, 1/2 HP. 10 AMPS @ 125 VAC, 6 AMPS @ 250 VAC
- Housing and Actuator: 6/6 nylon (UL94V-2), black, matte finish
- Illuminated Actuator: Polycarbonate, matte finish
- Center Contacts: Silver plated, copper alloy
- End Contacts: Silver plated
- All Terminals: Silver plated, copper alloy
- Electrical Life: 10,000 make and break cycles at full load
- Insulation Resistance: 10[8] Ω min
- Dielectric Strength: 1,500 VRMS @ sea level
- Operating Temperature: -20ºC to +85ºC
