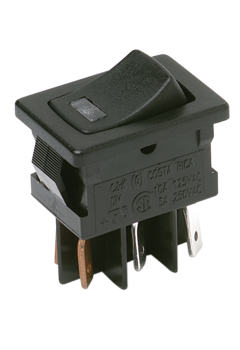

C&K COMPONENTS DM14J72S205Q3 2 Pole Power Rocker Switch
The C&K COMPONENTS DM14J72S205Q3 is a miniature 2-pole power rocker switch suitable for computers, appliances, and electric tools. It boasts a compact design, offering both general-purpose and resistive ratings, with options for silver or coin silver contacts. The switch is available with a recessed bracket to prevent accidental actuation and is RoHS compliant, ensuring environmental responsibility. Its quick-connect terminals simplify installation, making it a versatile choice for a wide range of industrial and commercial applications.
C&K COMPONENTS DM14J72S205Q3 2 Pole Power Rocker Switch Specifications:
- Contact Rating: DM21, DM22: 3 AMPS to 10 AMPS
- Housing and Actuator: 6/6 nylon (UL94V-2), black
- Movable Contacts: DM2X Models: Copper, silver plated. DM6X Models: Coin silver, silver plated.
- Stationary Contacts and Terminals: Copper or brass, silver plated
- Contact Spring: Music wire or stainless steel
- GP (general purpose): 3 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 3 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +65ºC
- Switch Function: DPDT, On-On / DPST, On-Off
- Actuator Color: Black or White
- Housing Style/Color: Snap-in, black / Recessed snap-in actuator guard, black / Actuator guard, black
- Terminations: Quick connect
- Actuator Markings: None, On-Off, O |
