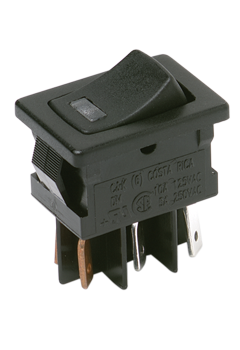

C&K COMPONENTS DM14J72S205Q6 2 Pole Power Rocker Switch
The C&K COMPONENTS DM14J72S205Q6 is a miniature 2-pole power rocker switch suitable for a wide range of applications including computers, appliances, and electric tools. It boasts a compact design, offering a combination of functionality and space-saving benefits. The switch is engineered with quick connect terminals for ease of installation and features a recessed bracket option to enhance safety by preventing unintended activation. RoHS compliance ensures environmental responsibility. Available with various options for switch function, actuator color, housing style, terminations, and actuator markings, allowing for customization to meet specific application requirements. The switch is rated for 3 to 10 amps at various voltages and offers a robust electrical life of 10,000 cycles.
C&K COMPONENTS DM14J72S205Q6 2 Pole Power Rocker Switch Specifications:
- Contact Rating: DM21, DM22: 3 AMPS to 10 AMPS
- Housing and Actuator: 6/6 nylon (UL94V-2), black
- Movable Contacts: DM2X Models: Copper, silver plated; DM6X Models: Coin silver, silver plated
- Stationary Contacts and Terminals: Copper or brass, silver plated
- Contact Spring: Music wire or stainless steel
- GP (general purpose): 3 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 3 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +65ºC
- Switch Function: DPDT, On-On; DPST, On-Off
- Actuator Color: Black, White
- Housing Style/Color: Snap-in, black; Recessed snap-in actuator guard, black; Actuator guard, black
- Terminations: Quick connect
- Actuator Markings: None, ON-OFF, O |
