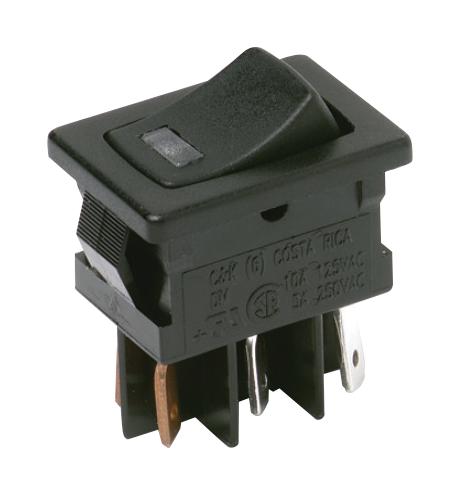

C&K COMPONENTS DM24J72S205Q6 2 Pole Power Rocker Switch
The C&K COMPONENTS DM24J72S205Q6 is a miniature 2-pole power rocker switch offering a compact solution for power control in a variety of applications. It boasts a robust design with quick connect terminals for ease of installation and a double-pole configuration for enhanced functionality. The switch is RoHS compliant, meeting environmental standards. Typical applications include computers, appliances, and electric tools, where reliable and space-saving power switching is required. Available options include different actuator colors, housing styles, and termination types to suit specific design needs.
C&K COMPONENTS DM24J72S205Q6 2 Pole Power Rocker Switch Specifications:
- Contact Rating: DM21, DM22: 3 AMPS to 10 AMPS
- Housing and Actuator: 6/6 nylon (UL94V-2), black
- Movable Contacts: DM2X Models: Copper, silver plated. DM6X Models: Coin silver, silver plated
- Stationary Contacts and Terminals: Copper or brass, silver plated
- Contact Spring: Music wire or stainless steel
- GP (general purpose): 3 AMPS 125 VAC 50/60 Hz, 2 AMPS 250 VAC 50/60 Hz, 3 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +65ºC
- Switch Function: DPDT, On-On / DPST, On-Off
- Actuator Color: Black or White
- Housing Style: Snap-in, Recessed snap-in
- Terminations: Quick connect
- Actuator Markings: None, On-Off, O |
- Contact Material: Silver plated
