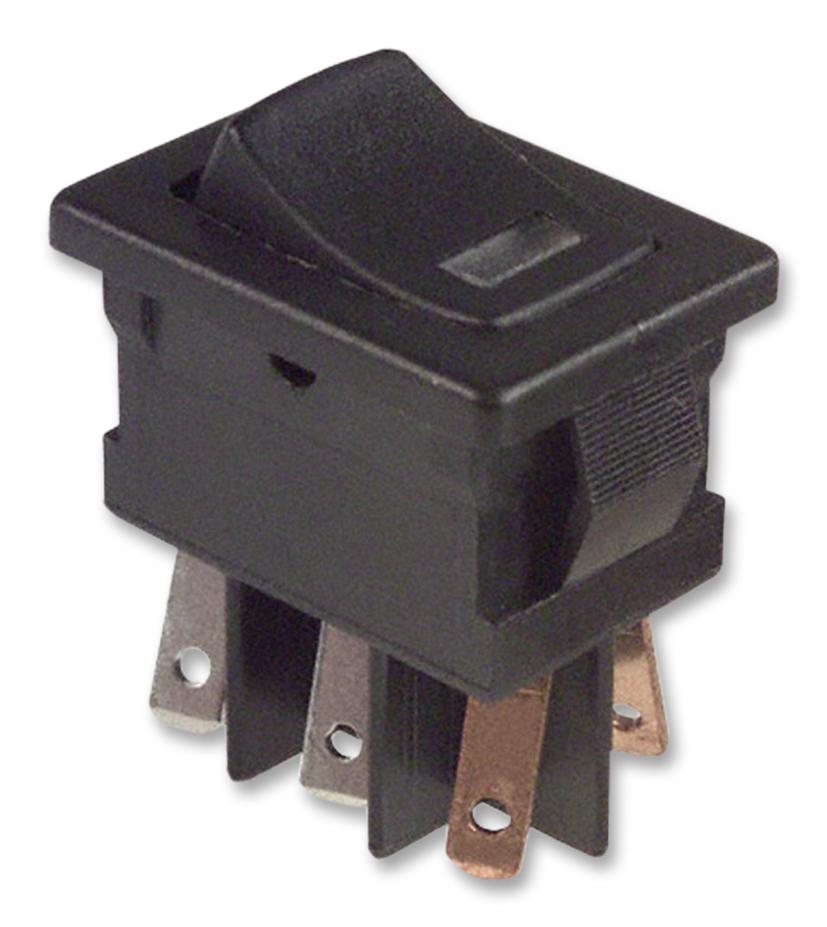

C&K COMPONENTS DM64J72S205Q6 2 Pole Power Rocker Switch
The C&K Components DM64J72S205Q6 is a miniature 2-pole power rocker switch suitable for a wide range of industrial and commercial applications. Its compact size and robust design make it ideal for use in computers, appliances, and electric tools. The switch offers quick connect terminals for easy installation and an optional recessed bracket to enhance safety and prevent unintended operation. It is RoHS compliant, ensuring environmental responsibility. Available with various actuator colors and housing styles to meet specific design requirements.
C&K COMPONENTS DM64J72S205Q6 2 Pole Power Rocker Switch Specifications:
- Contact Rating: DM21, DM22: 3 AMPS to 10 AMPS
- Housing & Actuator: 6/6 nylon (UL94V-2), black
- Movable Contacts: DM2X Models: Copper, silver plated. DM6X Models: Coin silver, silver plated
- Stationary Contacts & Terminals: Copper or brass, silver plated
- Contact Spring: Music wire or stainless steel
- GP (general purpose): 3 AMPS 125 VAC, 2 AMPS 250 VAC, 3 AMPS 30 VDC
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: -20ºC to +65ºC
- Switch Function: DPDT, On-On / DPST, On-Off
- Actuator Color: Black or White
- Housing Style: Snap-in, Recessed snap-in
- Terminations: Quick connect
- Actuator Markings: None, On-Off, O |
