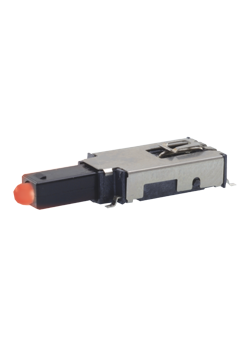

C&K COMPONENTS ELUMEESAQCO2 Right Angle Latching Pushbutton
The C&K COMPONENTS ELUMEESAQCO2 is a versatile illuminated latching pushbutton switch designed for demanding applications. Its right-angle configuration and low profile make it ideal for space-constrained environments. The switch offers SPDT functionality, reliable self-cleaning contacts, and a smooth feel, enhancing user experience. It's suitable for telecom network equipment, automotive electronics, consumer electronics, computer systems, and professional instrumentation, offering a robust and reliable solution for various control and signaling needs. RoHS compliant and compatible with lead-free processes, ensuring environmental responsibility.
C&K COMPONENTS ELUMEESAQCO2 Right Angle Latching Pushbutton Specifications:
- Operating Temperature: -40˚C TO 80˚C
- Storage Temperature: -40˚C TO 80˚C
- Relative Humidity: 90% R.H. @ 80˚C
- Operating Life: 30,000 Cycles
- Vibration: Per EIA 186-E Method
- Mechanical Shock: Per EIA 186-E Method 12
- Overload: Withstands 40 N for 1 minute without damage
- Fixed Contacts: Stainless steel, silver plated with gold flash
- Terminals: Stainless steel, silver plated
- Movable Contacts: Copper alloy, silver plated with gold flash
- Base: Glass filled LCP (UL94V-0)
- Actuator: Glass filled nylon 4/6 (UL94V-0)
- Cover: Stainless steel
- Maximum Power: 3.5 VA
- Minimum/Maximum Voltage: 20 mV – 50 VDC
- Minimum/Maximum Current: 0.01 mA – 250 mA
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 50 mΩ
- Insulation Resistance: ≥ 10[9] Ω
- Bounce Time: ≤1 ms
- LED Specifications: See page A-5
- Solderability: According to Mil STD 202F Method 208D or EIA RS-186E Method 9
- Lead Free Process Compatibility: 260˚C peak, 10 seconds Max. above 250º C
- Washing Process: No clean process compatible (SMT) Bottom wash compatible (Thru-hole)
- Shear Test (Switch/PCB): > 40 N
- Switching Travel: .067” (1.7 mm)
- Latch Travel: .131” (3.6 mm)
- Full Travel: .200” (5.1 mm)
- Operating Force: 2.5 N at Full Travel
- Terminal Style (SMT): Tape and reel per EIA 481-2 (450/reel)
- Terminal Style (PC): Tray (60/tray)
