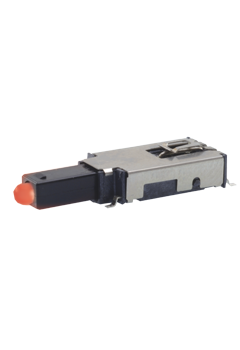

C&K COMPONENTS ELUMEETHQ2C22 Illuminated Latching Pushbutton
The C&K COMPONENTS ELUMEETHQ2C22 is a versatile right-angle, illuminated, latching pushbutton switch designed for a wide range of industrial and commercial applications. Its low-profile design minimizes height above the PCB, while the reliable self-cleaning contact ensures consistent performance. The switch is compatible with both surface mount (SMT) and thru-hole PCB mounting, offering flexibility in design. It's commonly used in telecom network equipment, automotive electronics, consumer electronics, computer systems, and professional instrumentation, where a robust and reliable push button solution is required. The switch is RoHS compliant and available with various LED illumination options to suit specific user needs.
C&K COMPONENTS ELUMEETHQ2C22 Illuminated Latching Pushbutton Specifications:
- Operating Temperature: -40˚C TO 80˚C
- Storage Temperature: -40˚C TO 80˚C
- Relative Humidity: 90% R.H. @ 80˚C
- Operating Life: 30,000 Cycles
- Vibration: Per EIA 186-E Method
- Mechanical Shock: Per EIA 186-E Method 12
- Overload: Withstands 40 N for 1 minute without damage
- Fixed Contacts: Stainless steel, silver plated with gold flash
- Terminals: Stainless steel, silver plated
- Movable Contacts: Copper alloy, silver plated with gold flash
- Base: Glass filled LCP (UL94V-0)
- Actuator: Glass filled nylon 4/6 (UL94V-0)
- Cover: Stainless steel
- Maximum Power: 3.5 VA
- Minimum/Maximum Voltage: 20 mV – 50 VDC
- Minimum/Maximum Current: 0.01 mA – 250 mA
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 50 mΩ
- Insulation Resistance: ≥ 10[9] Ω
- Bounce Time: ≤1 ms
- LED Specifications: See page A-5
- Solderability: According to Mil STD 202F Method 208D or EIA RS-186E Method 9
- Lead Free Process Compatible: 260˚C peak, 10 seconds Max. above 250º C
- Washing Process: No clean process compatible (SMT) Bottom wash compatible (Thru-hole)
- Shear Test (Switch/PCB): > 40 N
- Switching Travel: .067” (1.7 mm)
- Latch Travel: .131” (3.6 mm)
- Full Travel: .200” (5.1 mm)
- Operating Force: 2.5 N at Full Travel
- Terminal Style SA (SMT): Tape and reel per EIA 481-2 (450/reel)
- Terminal Style TH (PC): Tray (60/tray)
