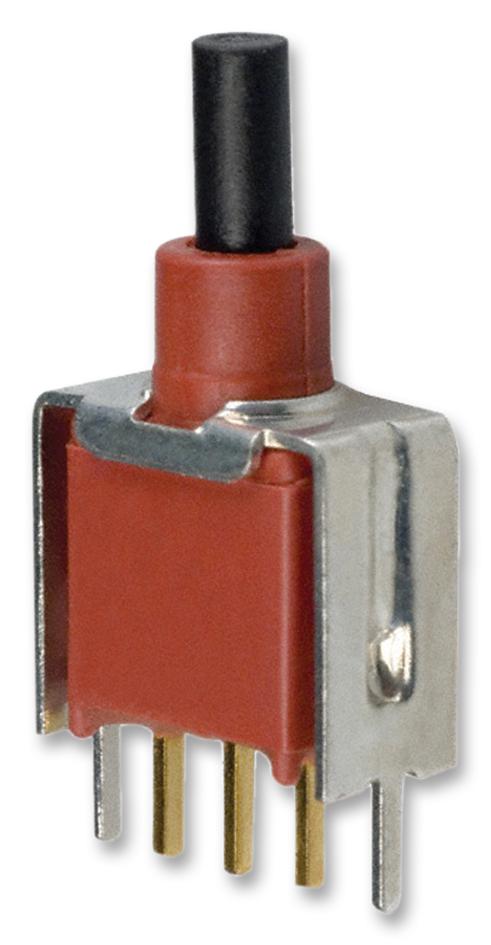

C&K COMPONENTS EP12SD1V3BE Sealed Tiny Pushbutton Switch
Sealed Tiny Pushbutton Switches from the EP Series are compact, sealed, and versatile components designed for telecommunications, networking, computing, and instrumentation applications. They feature IP57 protection, making them resistant to dust and temporary immersion. These switches are available in various configurations such as SPST, SPDT, and DPST, with options for snap-in, right-angle, surface-mount, and vertical mounting. Constructed with high-temperature materials and gold or silver plating for reliable contact resistance and durability, they withstand temperatures from -30°C to 85°C and are RoHS compliant, suitable for demanding industrial environments.
C&K COMPONENTS EP12SD1V3BE Sealed Tiny Pushbutton Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC/DC
- Electrical Life: 60,000 cycles for EP11/EP21, 30,000 cycles for EP12
- Contact Resistance: < 20 milliohms initial @ 2-4 V DC, 100 mA
- Insulation Resistance: ≥ 10^9 Ω
- Dielectric Strength: ≥ 1000 V rms at sea level
- Operating Temperature: -30°C to 85°C
- Solderability: MIL-STD-202F method 208D or EIA RS-186E
- Degree of Protection: IP57 (dustproof, waterproof, immersion)
- Materials: Glass filled nylon case, brass support with matte-tin plating, copper alloy contacts with gold or silver plating
- Mounting Options: Surface mount, through-hole, vertical, right angle, snap-in, V-bracket
- Mechanical & electrical cycles: Up to 60,000 for select models, RoHS compliant
- Sealed epoxy resin terminal seal, internal O-ring for plunger seal
Buy the Sealed Tiny Pushbutton Switches Series EP: EP12SD1V3BE
Order the Sealed Tiny Pushbutton Switch from the EP Series today to ensure durability and protection in your electronic projects. These compact switches offer IP57 ingress protection, making them ideal for demanding environments like telecommunications, networking, and instrumentation. With various mounting options including surface mount and through-hole, high-temperature materials, and gold or silver contacts, they deliver reliable performance for up to 60,000 cycles. Available in multiple colors and configurations, order online now for quick delivery and consistent quality.
Buy Sealed Tiny Pushbutton Switches from the EP Series now and experience unmatched reliability and performance for industrial and electronic applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS EP12SD1V3BE?
You can click on the BUY or RFQ button to purchase EP12SD1V3BE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part EP12SD1V3BE?
You can download the EP12SD1V3BE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of EP12SD1V3BE?
C&K COMPONENTS
