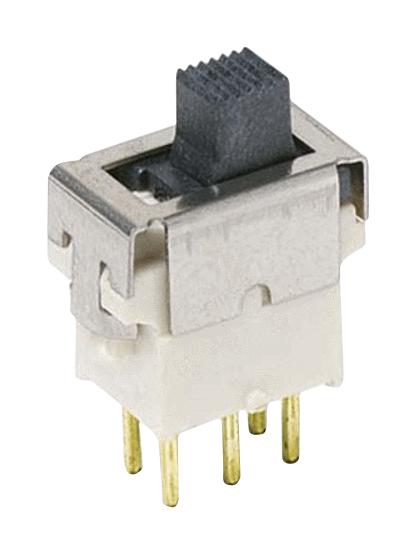

C&K COMPONENTS ES02MSABE Tiny Slide Switch
Sealed Tiny Slide Switches designed for reliable operation in various industrial and electronic applications, including computer peripherals, network devices, and test equipment. They feature process-compatible sealing with internal o-ring and epoxy base, providing protection against wave and reflow soldering, as well as cleaning processes. These switches offer long electrical life of up to 40,000 cycles, high insulation resistance, and diverse contact configurations like SPST, SPDT, and DPDT. They are RoHS compliant, with robust nylon housing and stainless steel actuation components, suitable for operating temperatures from -30°C to 85°C and full protection against dust and temporary immersion.
C&K COMPONENTS ES02MSABE Tiny Slide Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC/DC
- Mechanical & Electrical Life: 40,000 cycles
- Contact Resistance: 50 mΩ max. @ 2-4 V DC, 100 mA
- Insulation Resistance: 10^9Ω min.
- Dielectric Strength: 500 V rms min.
- Operating Temperature: -30°C to 85°C
- Solderability: MIL-STD-202F method 208D or EIA RS-186E method 9
- Degree of Protection: IP67
- ESD Endurance: 8 kV min.
- Housing & Base: Nylon (UL 94V-0)
- Actuator: LCP (UL 94V-0), black
- Surface Plate: Stainless steel with tin plate
- Movable Contact: Bronze with gold plate over nickel plate
- Stationary Contacts & Terminals: Copper alloy with gold over nickel plating
- Seal Materials: Epoxy
- Package options: Thru-hole in anti-static trays, surface mount in tape and reel
- Voltage Rating: Max 20 V AC/DC
- Temperature Range: -30°C to 85°C
- Certifications: RoHS compliant
Buy the Brand PartNumber – Reliable Sealed Tiny Slide Switches for Industrial Applications
Purchase ES series tiny slide switches online to benefit from dependable performance with sealed protection against dust, water, and soldering processes. These switches provide reliable contact operation, long electrical lifespan, and versatile mounting options suitable for industrial, networking, and testing applications. With RoHS compliance and high-quality materials, they guarantee durability in demanding environments. Easy online ordering ensures quick delivery, enabling seamless integration into your design and manufacturing workflows. Experience precision and durability with our trusted tiny slide switches today.
Buy ES series sealed tiny slide switches now and ensure long-lasting reliability in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ES02MSABE?
You can click on the BUY or RFQ button to purchase ES02MSABE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ES02MSABE?
You can download the ES02MSABE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ES02MSABE?
C&K COMPONENTS
