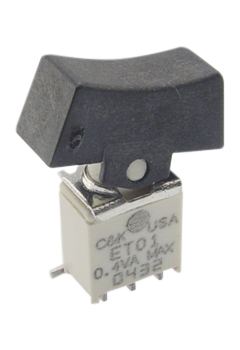

C&K COMPONENTS ET01J6AQE2 Sealed Rocker Switch
The C&K COMPONENTS ET01J6AQE2 is a sealed subminiature rocker switch offering a compact footprint and reliable performance. Constructed with glass-filled nylon 6/6 or 4/6 nylon, and featuring a UL 94V-0 rating, this switch is suitable for demanding applications. It is RoHS compliant and designed to withstand solder and cleaning process contaminants, making it ideal for telecommunications, instrumentation, and computer peripherals. Available with various actuator colors and termination options, the ET01J6AQE2 provides versatility for diverse design requirements.
C&K COMPONENTS ET01J6AQE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Electrical Life: 60,000 cycles (ETX1 models), 30,000 cycles (other models)
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Case & Bushing: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator: Nylon, black standard, with internal o-ring seal
- Switch Support: Brass, matte-tin plated
- Contacts & Terminals: Copper alloy, gold or silver plated
- Terminal Seal: Epoxy
- Switch Function: SP On-None-On
Buy the ET01J6AQE2 C&K COMPONENTS Sealed Rocker Switch | myMectronic
Purchase the C&K COMPONENTS ET01J6AQE2 securely and efficiently for your commercial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ET01J6AQE2?
You can click on the BUY or RFQ button to purchase ET01J6AQE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ET01J6AQE2?
You can download the ET01J6AQE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ET01J6AQE2?
C&K COMPONENTS
