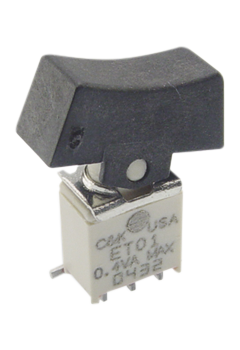

C&K COMPONENTS ET05J6V3PE2 Sealed Rocker Switch
The C&K COMPONENTS ET05J6V3PE2 is a sealed subminiature rocker switch engineered for demanding applications requiring a compact and reliable switching solution. Its sealed construction protects against contaminants, ensuring consistent performance in harsh environments. The switch features a small footprint, making it ideal for space-constrained designs. Constructed with UL 94V-0 rated materials, it provides enhanced safety and heat resistance. Typical applications include telecommunications equipment, instrumentation panels, and computer peripherals. The switch is RoHS compliant, aligning with environmental regulations. Available with various termination options and actuator colors to meet specific design requirements.
C&K COMPONENTS ET05J6V3PE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Electrical Life: 30,000 cycles (most models), 60,000 cycles (ETX1 models)
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Case & Bushing: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator: Nylon, black standard, with internal o-ring seal
- Switch Support: Brass, matte-tin plated
- Contacts & Terminals: Copper alloy, gold or silver plated
- Terminal Seal: Epoxy
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
Buy the ET05J6V3PE2 C&K COMPONENTS Sealed Rocker Switch | myMectronic
Purchase the C&K COMPONENTS ET05J6V3PE2 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS ET05J6V3PE2?
You can click on the BUY or RFQ button to purchase ET05J6V3PE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ET05J6V3PE2?
You can download the ET05J6V3PE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ET05J6V3PE2?
C&K COMPONENTS
