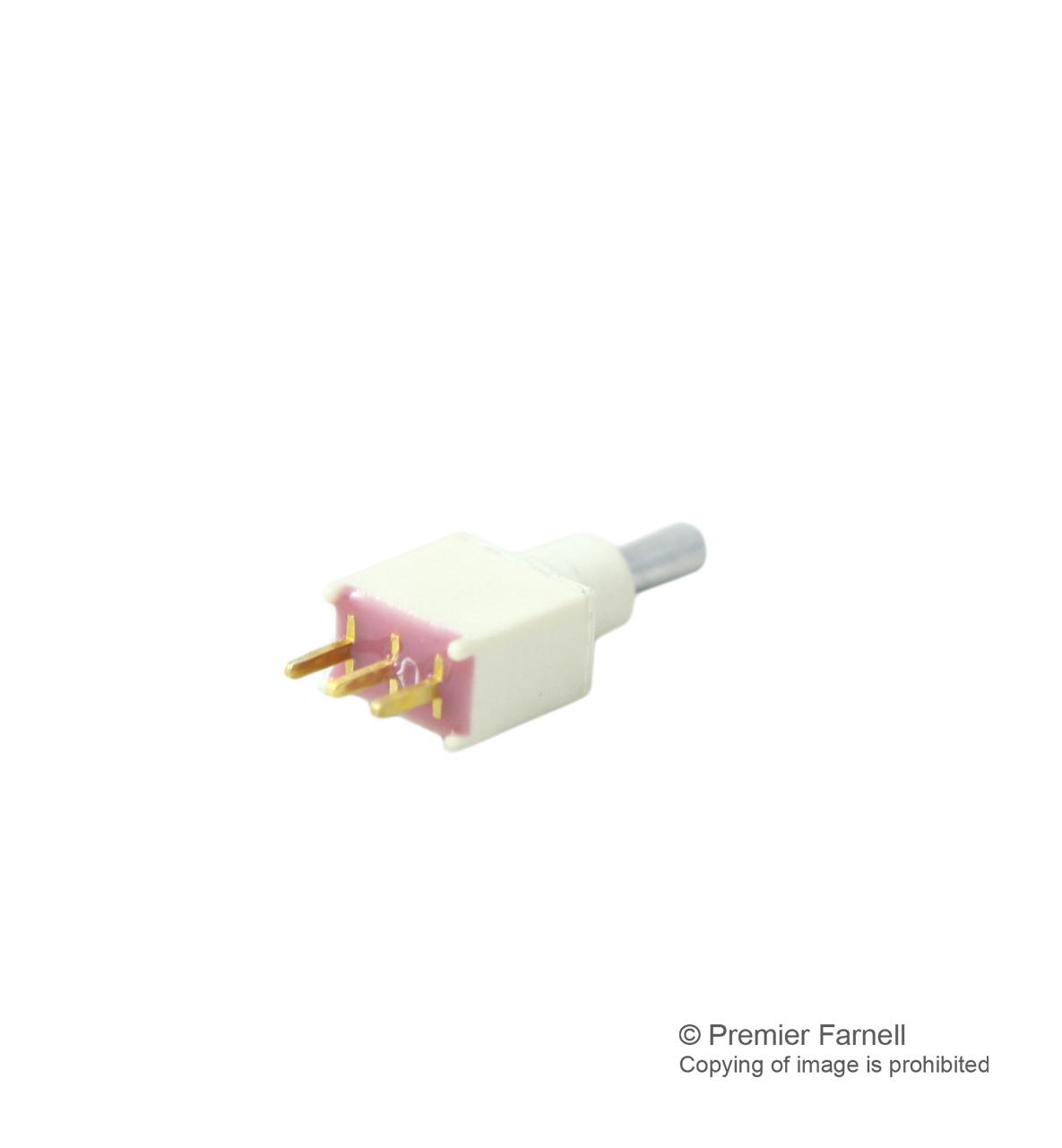

C&K COMPONENTS ET07MD1CBE Sealed Toggle Switch
The sealed miniature toggle switch features process sealing, high dielectric strength, and IP57 protection, suitable for telecommunications, instrumentation, and medical equipment. It offers various actuator options, contact materials, and mounting types, including surface-mount and thru-hole configurations. Capable of withstanding 30°C to 85°C temperatures, it resists static discharge and has a long electrical life of up to 60,000 cycles. Constructed with durable nylon and brass components, this switch ensures reliable performance in compact applications with RoHS compliance available.
C&K COMPONENTS ET07MD1CBE Sealed Toggle Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 VAC or DC max.
- Electrical Life: 60,000 cycles (ETX1), 30,000 cycles (other models)
- Contact Resistance: Below 20 mΩ initial
- Insulation Resistance: Min. 10^9 Ω
- Dielectric Strength: 1000 V rms min.
- Operating Temperature: ~30°C to 85°C
- Degree of Protection: IP57, protection against dust and temporary immersion
- Materials: Nylon 6/6 or 4/6 for case and bushing, brass for support, copper alloy contacts
- Actuator Options: Nylon anti-static, brass chrome-plated, or conductive bushing
- Termination Types: PC thru-hole, surface mount, snap-in
- RoHS compliant models available
- Solderability: MIL-STD-202F method 208D
- Packaging: Tape and reel options available
Buy the Buy Toole RIES ET Series Sealed Subminiature Toggle Switches Part Number ET07MD1CBE Online
Order the Toole RIES ET07MD1CBE sealed toggle switch online today. Designed for high durability and reliable operation in telecommunications, medical devices, and instrumentation, it features IP57 protection, various mounting options, and RoHS compliance. The switch withstands harsh environments with a maximum temperature of 85°C, offers a long electrical life, and resists static discharge. Experience quick, easy online purchasing and ensure your project gets high-quality, dependable switching components delivered promptly.
Get Toole RIES ET07MD1CBE today—built for precision, durability, and reliable performance in compact designs.
