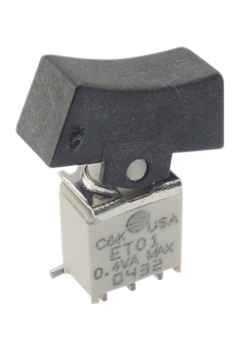

C&K COMPONENTS ET21J1V3BE2 Sealed Rocker Switch
The C&K COMPONENTS ET21J1V3BE2 is a sealed subminiature rocker switch engineered for demanding applications requiring resistance to contaminants and harsh environments. Its compact footprint saves valuable space, while the UL 94V-0 rated case, bushing, and rocker provide enhanced safety and durability. RoHS compliant, this switch is suitable for telecommunications equipment, instrumentation panels, and computer peripherals. Available with various actuator colors and termination options to meet specific design requirements. The switch offers electrical life of 30,000 cycles and contact resistance below 20 mΩ, ensuring reliable switching performance.
C&K COMPONENTS ET21J1V3BE2 Sealed Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Electrical Life: 30,000 cycles
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Case & Bushing: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator: Nylon, black standard
- Switch Support: Brass, matte-tin plated
- Contacts & Terminals: Copper alloy, silver or gold plated
- Terminal Seal: Epoxy
Buy the ET21J1V3BE2 C&K COMPONENTS Sealed Rocker Switch | myMectronic
Purchase the C&K COMPONENTS ET21J1V3BE2 securely and efficiently for your industrial needs.
