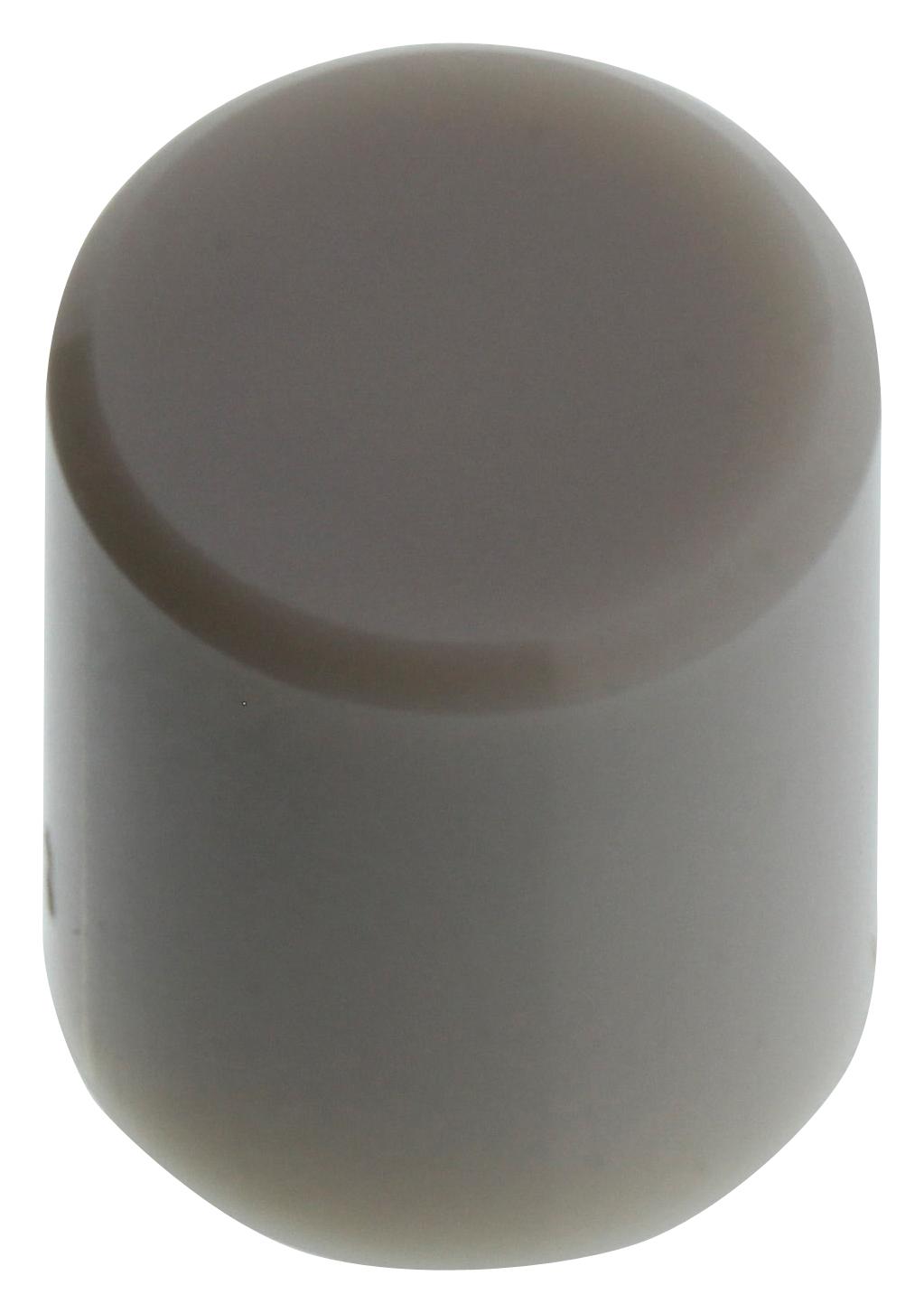

C&K COMPONENTS F0204 pushbutton switch
The F Series pushbutton switches are versatile, multi-pole devices suitable for industrial, medical, and digital interface applications. They feature mechanical indicator buttons, illumination options, various contact terminals, and mounting configurations. Designed for reliability, these switches support up to 10 poles per module, with switching power up to 50 VA/15W for silver contacts. They operate across a temperature range of -40°C to 70°C, with high dielectric strength and long operational life, making them ideal for automation, control panels, and user interface designs.
C&K COMPONENTS F0204 pushbutton switch Specifications:
- Switching Power: Silver: 50 VA/15W, Gold: 1 VA/300 mW
- Switching Voltage: Silver: 125/30V, Gold: 50/30V
- Switching Current: Silver: 0.5A/0.5A, Gold: 0.044/0.01A
- Carrying Current: Silver: < 2A, Gold: <0.5A
- Dielectric Strength: 1500V between contacts and chassis
- Operating Life: >10^5 operations at 24V/200mA, >3.5 x 10^4 operations
- Contact Resistance: Initial %10 mΩ, Max 20 mΩ
- Insulation Resistance: 10^9Ω between open contacts and chassis
- Capacitance: 0.7 pF at 10kHz
- Total Travel: 4.7mm, Latching Travel: 3.3mm
- Materials: Polycarbonate or polyester housing, brass contacts with silver or gold plating
- Operation Temperature: -40°C to 70°C
Buy the CK Components F0204 U+2013 Reliable Pushbutton Switches for Industrial Applications
Purchase the CK Components F0204 pushbutton switch online now to ensure reliable operation in industrial, medical, and digital applications. Featuring multi-pole configurations, illumination options, and durable construction, this switch is perfect for control panels and automation systems. With high dielectric strength, long operational life, and RoHS compliance, it ensures safety and efficiency in demanding environments. Buy online today and give your projects dependable, quality switching solutions tailored for your control interface needs.
Order your CK Components F0204 Series pushbutton switch today and enhance your control panels with durable, multi-pole reliability for industrial automation.
Frequently Asked Questions
Where can I buy C&K COMPONENTS F0204?
You can click on the BUY or RFQ button to purchase F0204 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part F0204?
You can download the F0204 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of F0204?
C&K COMPONENTS
