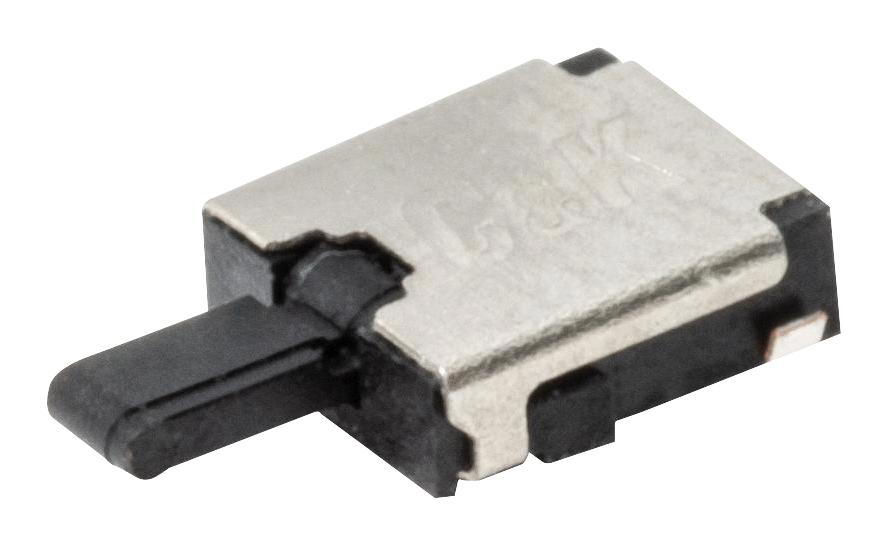

C&K COMPONENTS FDSD002R Detect Switch
The FDSD series consists of micro mini side actuated detect switches designed for compact applications in consumer electronics, medical devices, and safety control systems. They feature vertical side actuation with flat or bending terminations and have a travel of 3.05 mm or 60°. These RoHS-compliant switches offer a contact rating of 50 pA at 3VDC and 10 mA at 5 VDC, with a mechanical and electrical life of 50,000 operations. Made with durable materials including beryllium copper and phosphor bronze, they ensure reliable performance in tight spaces.
C&K COMPONENTS FDSD002R Detect Switch Specifications:
- Contact Rating: 50 pA @ 3VDC, 10 mA @ 5 VDC
- Mechanical & Electrical Life: 50,000 operations
- Contact Resistance: 1 Ω max
- Insulation Resistance: 100 MΩ min
- Dielectric Strength: 100 VAC @ 1 minute
- Operating Temperature: -10°C to +60°C
- Operating Force: 40 gf max.
- Travel: 3.05 mm or 60°
- Solderability: According to lead-free solder profiles
- Materials: Base made of PAST; Cover in C7701R; Actuator from PA 46; Movable contact in Beryllium Copper; Terminals in Phosphor Bronze with Ag over Ni plating
Buy the Ck Switches FDSD002R – Reliable Detect Switches for Industrial Applications
Order the Ck Switches FDSD series detect switch online today to secure high-quality, miniature detect switches with durable materials, fast response, and reliable operation. Perfect for tight spaces in consumer electronics, medical devices, and safety controls, these RoHS-compliant switches stand out for their long life of 50,000 operations and precise operation. Featuring vertical side actuation with flat or bending terminations, they are easy to install, solder, and integrate into your projects for enhanced safety and product reliability.
Buy Ck Switches FDSD002R now and experience unmatched reliability and performance in small, high-precision detect switches for industrial applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS FDSD002R?
You can click on the BUY or RFQ button to purchase FDSD002R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part FDSD002R?
You can download the FDSD002R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of FDSD002R?
C&K COMPONENTS
