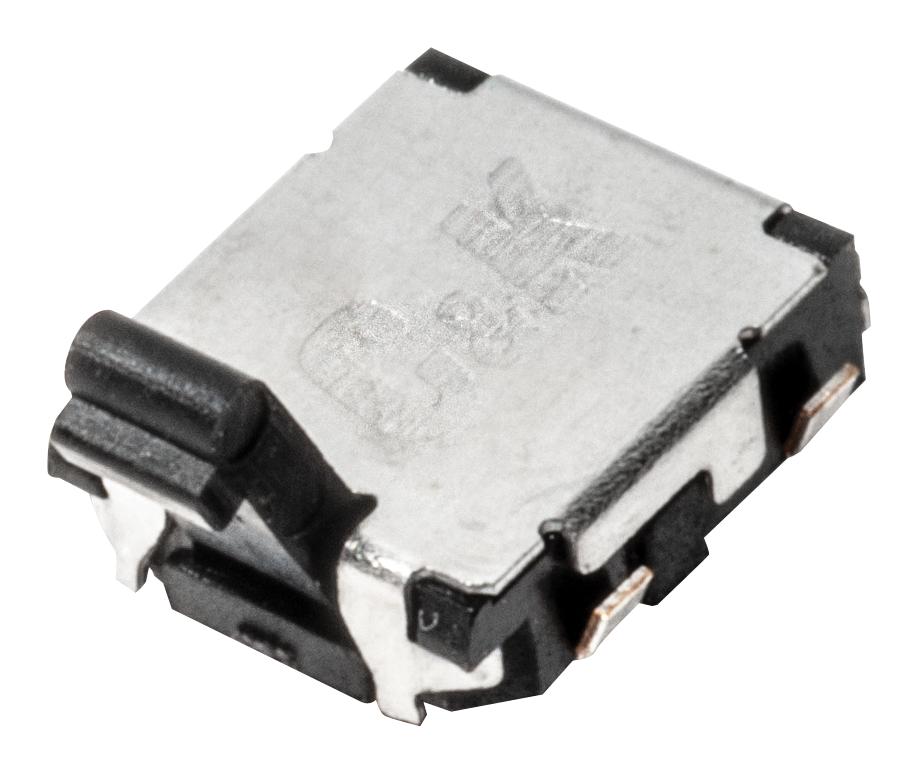

C&K COMPONENTS FDSE002R Micro Mini Angled Detect Switch
The FDSE Series Micro Mini Angled Actuated Detect Switches are compact, versatile switches designed for precise detection with angled actuation and long travel options. Ideal for consumer electronics, medical devices, and safety control applications, these switches feature a compact package size, RoHS compliance, and bended or flat terminations. Made with high-quality materials including beryllium copper contacts and phosphor bronze terminals, they offer reliable operation with a mechanical lifespan of 50,000 cycles. Their operating temperature range is -10°C to +60°C, and they support solderability compatible with lead-free profiles.
C&K COMPONENTS FDSE002R Micro Mini Angled Detect Switch Specifications:
- Contact Rating: 100 A at 3 VDC, 1 mA at 5 VDC
- Mechanical & Electrical Life: 50,000 operations
- Contact Resistance: 3 0 max
- Insulation Resistance: 100 MΩ min at 100 VDC
- Dielectric Strength: 100 VAC for 1 minute
- Operating Temperature: -10°C to +60°C
- Operating Force: 35 gf max
- Travel: 3.14 mm or 60°
- Solderability: According to lead-free solder profiles
- Materials: Base - PAST, Cover - C7701R, Actuator - PA 46, Movable Contact - Beryllium Copper, Terminals - Phosphor Bronze with Ag over Ni plating
Buy the Detect Switch Series FDSE: FDSE002R
Order the FDSE Series FDSE002R angled detect switch online today to ensure precise detection in compact electronic applications. Designed with a small footprint, long travel, and high durability, this switch provides excellent performance for consumer electronics, medical devices, and safety control systems. Its RoHS compliance ensures environmentally friendly manufacturing, while materials like beryllium copper contacts guarantee reliable operation over extensive use. Perfect for applications requiring sensitive detection and robust build, the FDSE002R offers quick solderability and a lifespan of 50,000 cycles, making it an ideal choice for innovative product designs.
Buy FDSE Series FDSE002R angled detect switch now and experience reliable performance for precision detection in small electronic devices.
Frequently Asked Questions
Where can I buy C&K COMPONENTS FDSE002R?
You can click on the BUY or RFQ button to purchase FDSE002R from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part FDSE002R?
You can download the FDSE002R datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of FDSE002R?
C&K COMPONENTS
