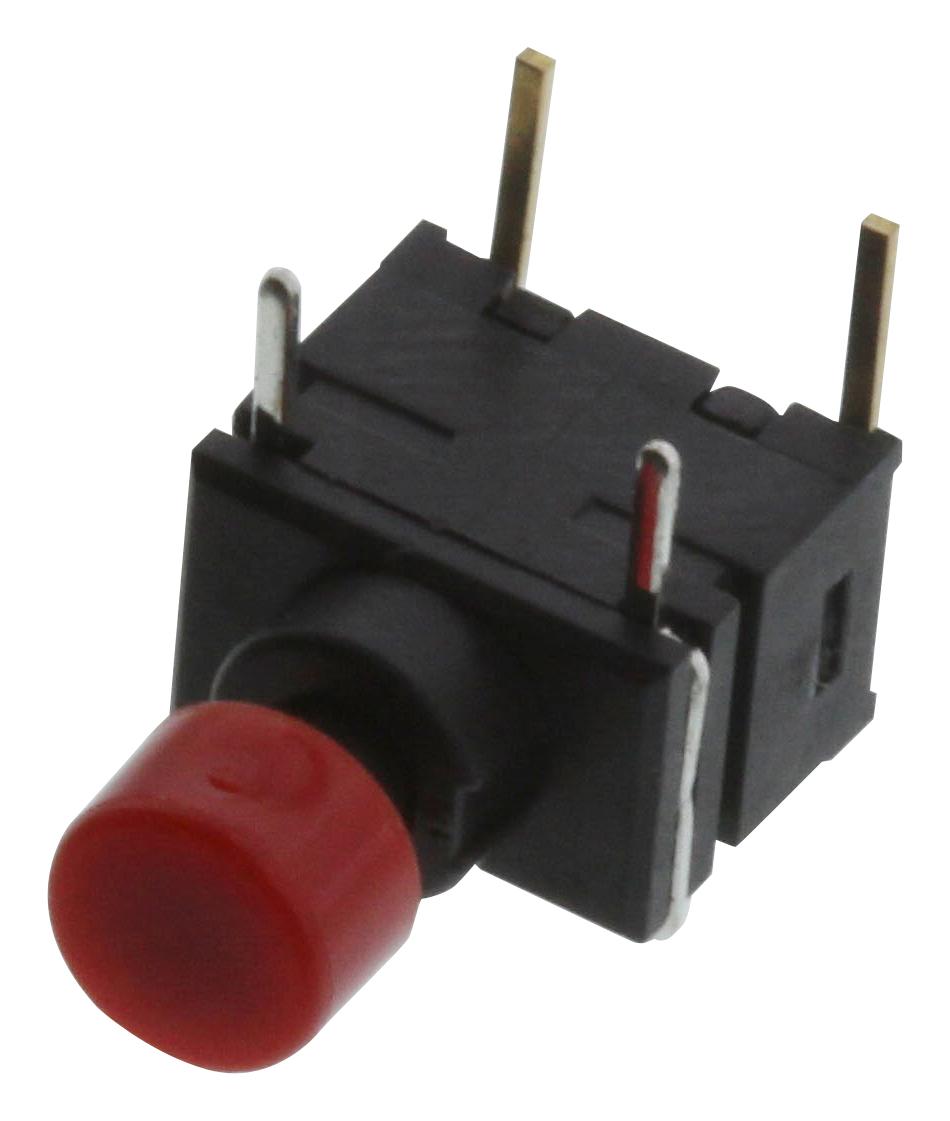

C&K COMPONENTS FP11SPA1B1TP03 Sealed Pushbutton Switch
The Sealed Ultra Miniature Pushbutton Switches from the FP Series offer reliable, sealed operation suitable for networking, instrumentation, and reset functions. Featuring a long life of 50,000 cycles, various mounting options, and optional caps, they are designed for durability and environmental resistance. Made with high-quality materials, including gold-plated contacts, these switches operate efficiently in temperatures from -20°C to 80°C, resistant to soldering processes, and conform to RoHS standards. Their compact size and sealed design make them ideal for tight spaces and challenging environments.
C&K COMPONENTS FP11SPA1B1TP03 Sealed Pushbutton Switch Specifications:
- Contact Rating: Max. 0.4 VA (28 V DC or V AC)
- Electrical Life: 50,000 cycles
- Contact Resistance: 80 mΩ max. (10mA @ 2 V DC)
- Insulation Resistance: 500 MΩ min. @ 500 V DC for 1 min
- Operating Temperature: -20°C to 80°C
- Materials: Movable contacts - Phosphor bronze with gold over nickel plating; Fixed contacts - Brass with gold over nickel plating; Cover, actuator, base - PA66, PPS; Support bracket - Steel with tin plate
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9
- Packaging: Tray pack – 100 switches; Optional caps – 100 caps per bag
- Dimensions and mounting hole patterns vary; refer to detailed datasheet
- Sealed against soldering and cleaning processes, RoHS compliant
Buy the CK Switch Series FP Sealed Ultra Miniature Pushbutton: FP11SPA1B1TP03
Purchase the CK Switch FP series sealed pushbutton switch online today to ensure reliable, sealed operation for your instrumentation, networking, or reset applications. Designed with high-quality materials like gold-plated contacts and robust housings, these switches offer 50,000 cycles of life and are RoHS compliant. Their sealed design resists soldering and cleaning processes, making them perfect for challenging environments. Available in various caps and mounting options, order now for quick delivery and superior performance in compact spaces.
Get CK Switch FP11SPA1B1TP03 today—built for precision, long-lasting durability, and reliable sealed operation in compact designs.
Frequently Asked Questions
Where can I buy C&K COMPONENTS FP11SPA1B1TP03?
You can click on the BUY or RFQ button to purchase FP11SPA1B1TP03 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part FP11SPA1B1TP03?
You can download the FP11SPA1B1TP03 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of FP11SPA1B1TP03?
C&K COMPONENTS
