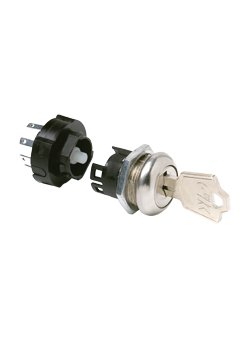

C&K COMPONENTS H101132F205NB Tumbler Power Switchlock
The C&K COMPONENTS H101132F205NB is a robust tumbler power switchlock engineered for use in machine controls, elevators, and other industrial environments requiring secure and reliable power switching. It incorporates a positive detent mechanism for precise positioning, multi-pole and multi-position functionality to accommodate various circuit configurations, and a snap-together assembly for simplified installation. Constructed with zinc alloy and stainless steel facing for the lock, and 6/6 nylon for the switch housing, this switchlock provides durability and resilience. Available with various keying options and terminations, the H101132F205NB offers versatility to meet diverse application needs.
C&K COMPONENTS H101132F205NB Tumbler Power Switchlock Specifications:
- Contact Rating: 12 AMPS @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (UL/CSA)
- Electrical Life: 10,000 make-and-break cycles at full load
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Operating Temperature: –30ºC to 85ºC
- Indexing: 45º or 90º, 2-4 Positions
- Lock Material: Zinc alloy with stainless steel facing
- Switch Housing Material: 6/6 nylon (UL 94V-2)
- Contact Material: Copper, silver plated
- Contact Spring Material: Music wire or stainless steel
- Mounting Nut Material: Zinc alloy
- Mounting Clip Material: Steel, zinc plated
- Dress Nut Material: Brass, nickel plated
- Terminal Seal Material: Epoxy
