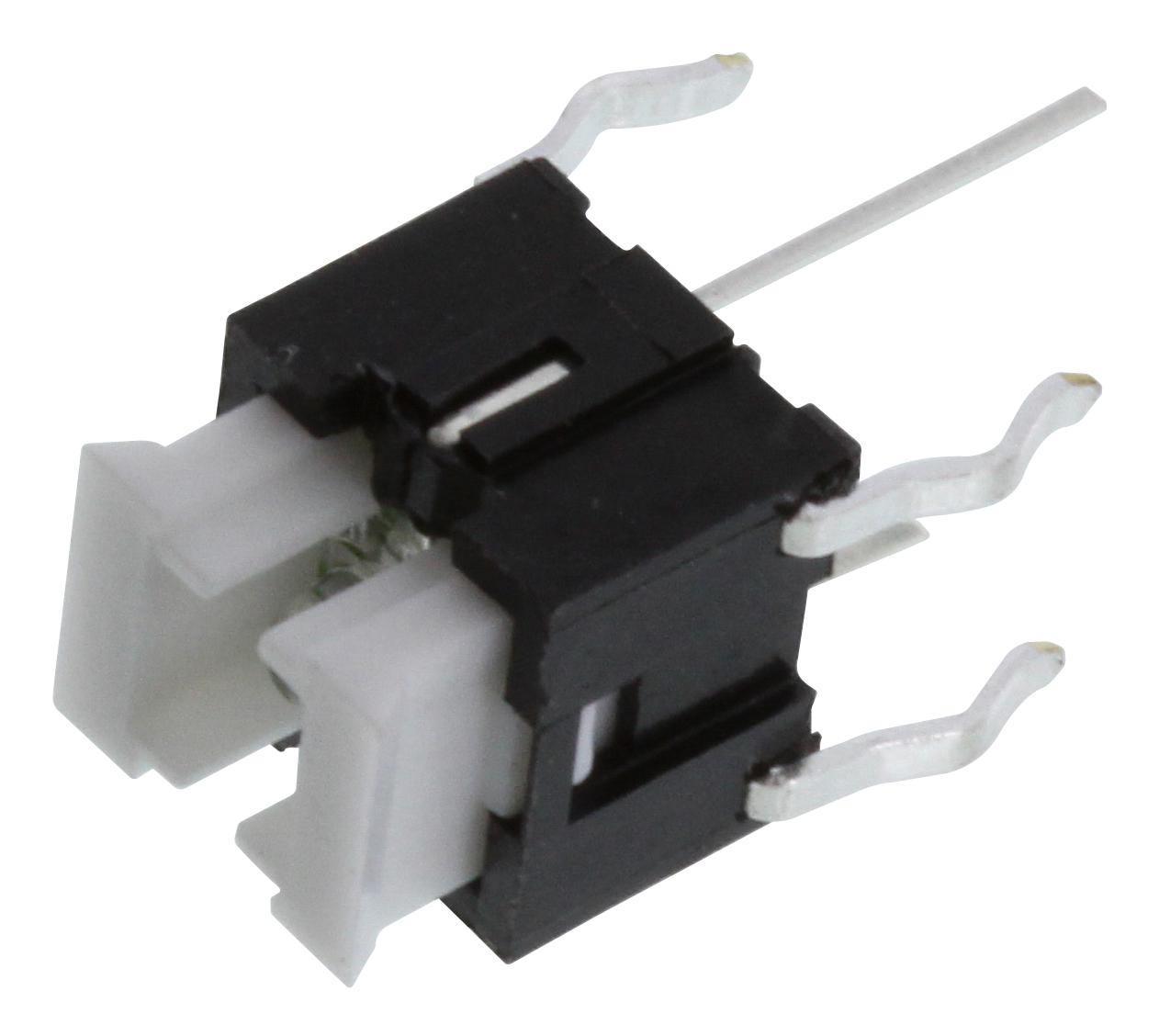

C&K COMPONENTS ILSTA18030 LED Tactile Switch
The integrated LED tactile switch features a compact design with various heights, different LED colors, and high durability suitable for consumer electronics, healthcare devices, and audio/video control. It operates with a travel of 0.25 mm and has a rated electrical capacity of 100mA at 30VDC, with an operating life of 100,000 cycles. The switch withstands temperatures from -40°C to +85°C, ensuring reliable performance in diverse environments. It offers easy customization with multiple style, height, actuation force, and LED color options, making it ideal for versatile electronic applications.
C&K COMPONENTS ILSTA18030 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Style & Height options: TA 7.20mm, TB 8.50mm, TC 7.00mm
- LED Color Options: Red, Yellow/Green, Blue, White, Green
- Led Power Dissipation: 18-120mW depending on color
- Forward Current: 5-30mA depending on color
- Forward Voltage: 2.3V to 3.6V
- Viewing Angle: 35°
- Mounting: THT (through-hole) compatible
- Operating Environment: Suitable for diverse consumer electronic devices
Buy the Buy CK Switches ILS Series Integrated LED Tactile Switch Part Number ILSTA18030 Online
Order the CK Switches ILS Series LED Tactile Switch online today for reliable, high-performance switching solutions. Designed for consumer electronics, medical devices, and control panels, this versatile switch offers multiple height, LED color, and actuation options. With a rated lifespan of 100,000 cycles and operating temperatures from -40°C to +85°C, it ensures durability and consistent performance in various environments. Simplify your assembly by purchasing online and enhance your electronic device’s user interface with this high-quality tactile switch.
Buy CK Switches ILS Series ILSTA18030 now and experience unmatched reliability and performance with customizable styles and LED colors for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTA18030?
You can click on the BUY or RFQ button to purchase ILSTA18030 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTA18030?
You can download the ILSTA18030 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTA18030?
C&K COMPONENTS
