C&K COMPONENTS ILSTA18040 LED Tactile Switch
The ILS Series Integrated LED Tact Switch features a compact size with options for different heights, LED colors, and actuation forces, making it ideal for consumer electronics, health monitoring devices, and test & measurement equipment. It offers a mechanical life of 100,000 cycles, operating at temperatures from -40°C to +85°C. The switch includes various LED color choices such as red, yellow/green, blue, white, and green, with specific electrical and environmental specifications ensuring durability and reliable performance in demanding applications. Its THT version provides easy assembly with bulk packaging of 500 pieces per bag.
C&K COMPONENTS ILSTA18040 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC; 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Packaging: Bulk in bags of 500 pieces
- Dimensions: Height options 7.00 mm, 7.20 mm, 9.00 mm; Actuation Force 180gf or 250gf
- LED Colors: Red, Yellow/Green, Blue, White, Green
- LED Forward Voltage: 2.3–3.6V depending on color
- Mechanical action: THT style with several LED color options
- Environmental resistance includes high temperature tolerance and insulation resistance.

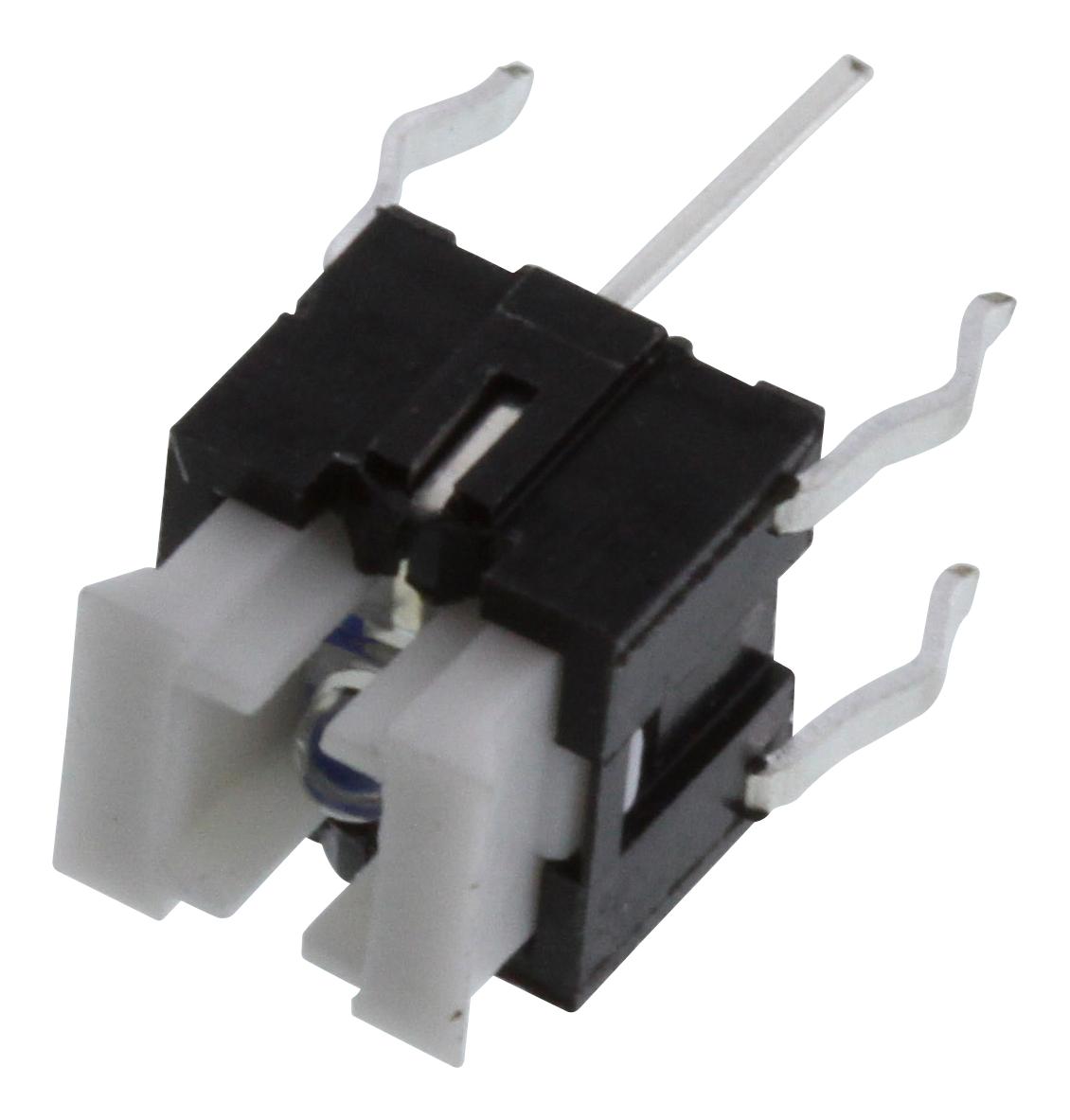

Buy the Ck Switches ILSTA18040 – Reliable Tactile Switch for Industrial Applications
Order the proven LED tactile switch from Ck Switches today and enjoy easy assembly, high durability, and a range of customizable options. Perfect for consumer electronics, test & measurement, health devices, and control boards, this switch offers a long life cycle and excellent environmental resistance. With bulk packaging available, it’s ideal for large-scale manufacturing or repair projects. Ensure your devices operate reliably with this high-quality, feature-rich tactile switch designed for demanding industrial applications. Purchase now to enhance your electronics with trusted performance.
Buy Ck Switches ILSTA18040 now and experience unmatched reliability and performance for your electronics projects and control systems.
