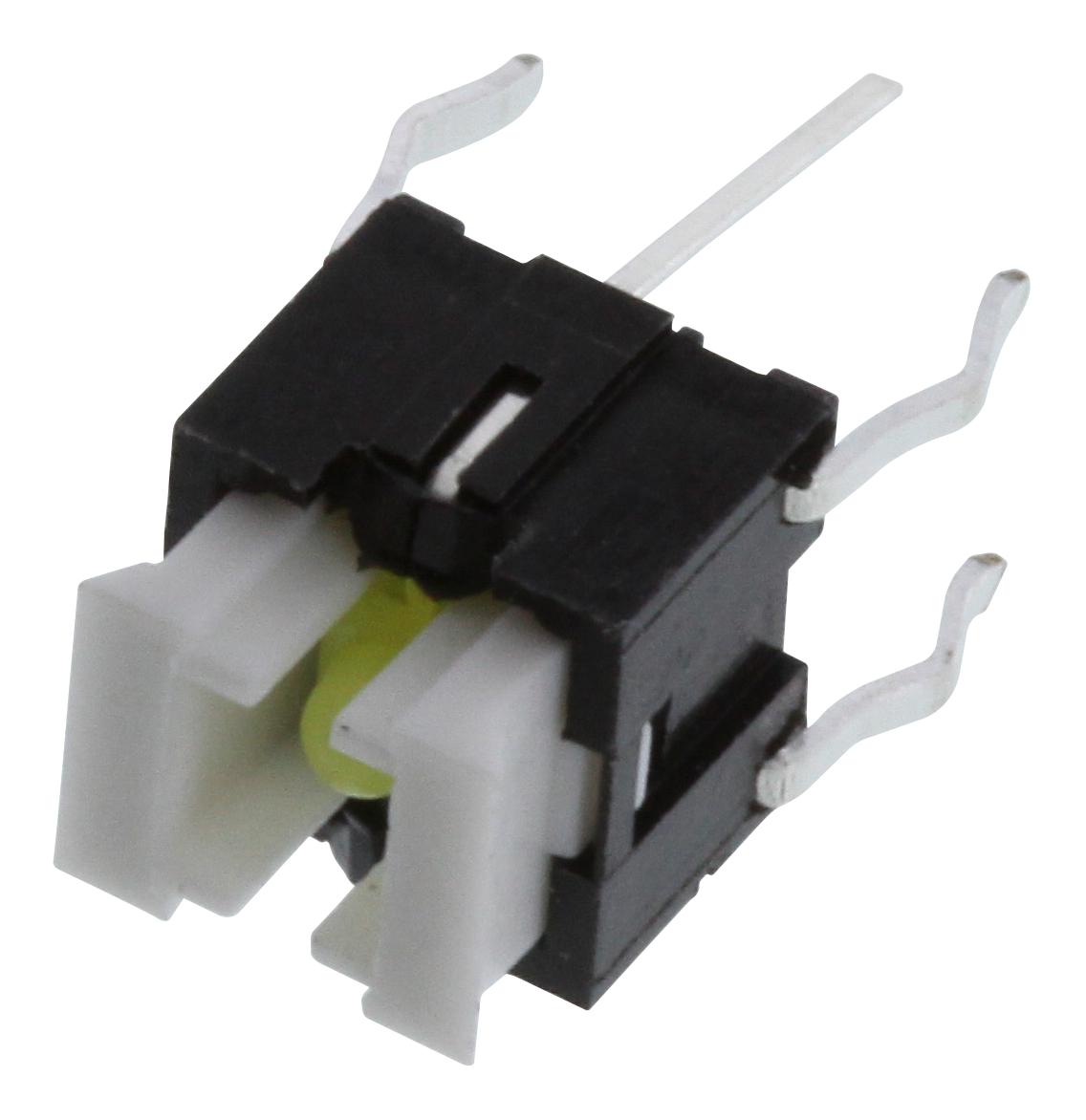

C&K COMPONENTS ILSTA18050 LED Tactile Switch
The ILS Series integrated LED tact switch offers reliable, compact tactile switching with high cycle life, multiple LED color options, and excellent environmental stability. Designed for consumer electronics, health monitoring devices, test equipment, and audio/video control systems, it features a travel distance of 0.25 mm, operating life of 100,000 cycles, rated at 100mA @ 30VDC, and insulation resistance of 100MΩ minimum. The switch operates in temperatures from -40°C to +85°C and comes in various heights, actuation forces, and LED colors, making it ideal for precise and durable electronic control solutions.
C&K COMPONENTS ILSTA18050 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC (50-60 Hz 2mA) for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- LED Colors: Red, Yellow/Green, Blue, White, Green
- Actuation Force: 180 gf or 250 gf
- Style Heights: 7.00 mm, 7.20 mm, 8.50 mm
- Dimensions vary by style, typical P.C.B land dimension around 6.75 mm
- Electrical Characteristics: Forward Voltage 2.3-3.6V, Max. Forward Current 20-30mA, Peak Forward IFP 100mA, Reverse Voltage 5V, Luminous Intensity 63-1000 mcd
- Environmental Resistance: Waterproof, stable at operating temperatures
- Packaging: Bulk in bags of 500 pieces, 2 bags per carton
Buy the CKSwitches ILSTA18050 – Reliable Tactile Switch for Industrial Applications
Enhance your electronic projects with our durable LED tactile switches. Featuring multiple colors, high cycle life, and compact design, this switch ensures reliable performance for consumer electronics, health monitoring, and control applications. Rated for 100mA at 30VDC, operates from -40°C to +85°C, and offers various heights and actuation forces to suit your needs. Easy to assemble with bulk packaging, this switch provides excellent insulation resistance and long-lasting operation, making it an essential component for professional and hobbyist electronics.
Buy CKSwitches ILSTA18050 now and experience unmatched reliability and performance in precise electronic control components.
