C&K COMPONENTS ILSTB18010 LED Tactile Switch
The ILS Series Integrated LED Tact Switch features compact design with various height options and LED colors, suitable for consumer electronics, health devices, audio/video controls, and test equipment. It offers a mechanical travel of 0.25 mm, 100,000-cycle lifespan, rated for 100mA at 30VDC, and a dielectric withstand voltage of 250VAC. Operating temperature ranges from -40°C to +85°C. Comes in bulk packaging. The switch provides reliable tactile feedback, multiple LED color options, and easy assembly for diverse electronic applications.
C&K COMPONENTS ILSTB18010 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Packaging: Bulk in bags of 500 pieces
- Mechanical dimensions vary by style and height
- LED Colors: Red, Yellow/Green, Blue, White, Green
- LED Forward Voltage: from 2.3V to 3.6V depending on color
- LED Power Dissipation: 18-120 mW
- Maximum Forward Current: 5-30mA
- Dimensions: generally around 7-9 mm height, different options available

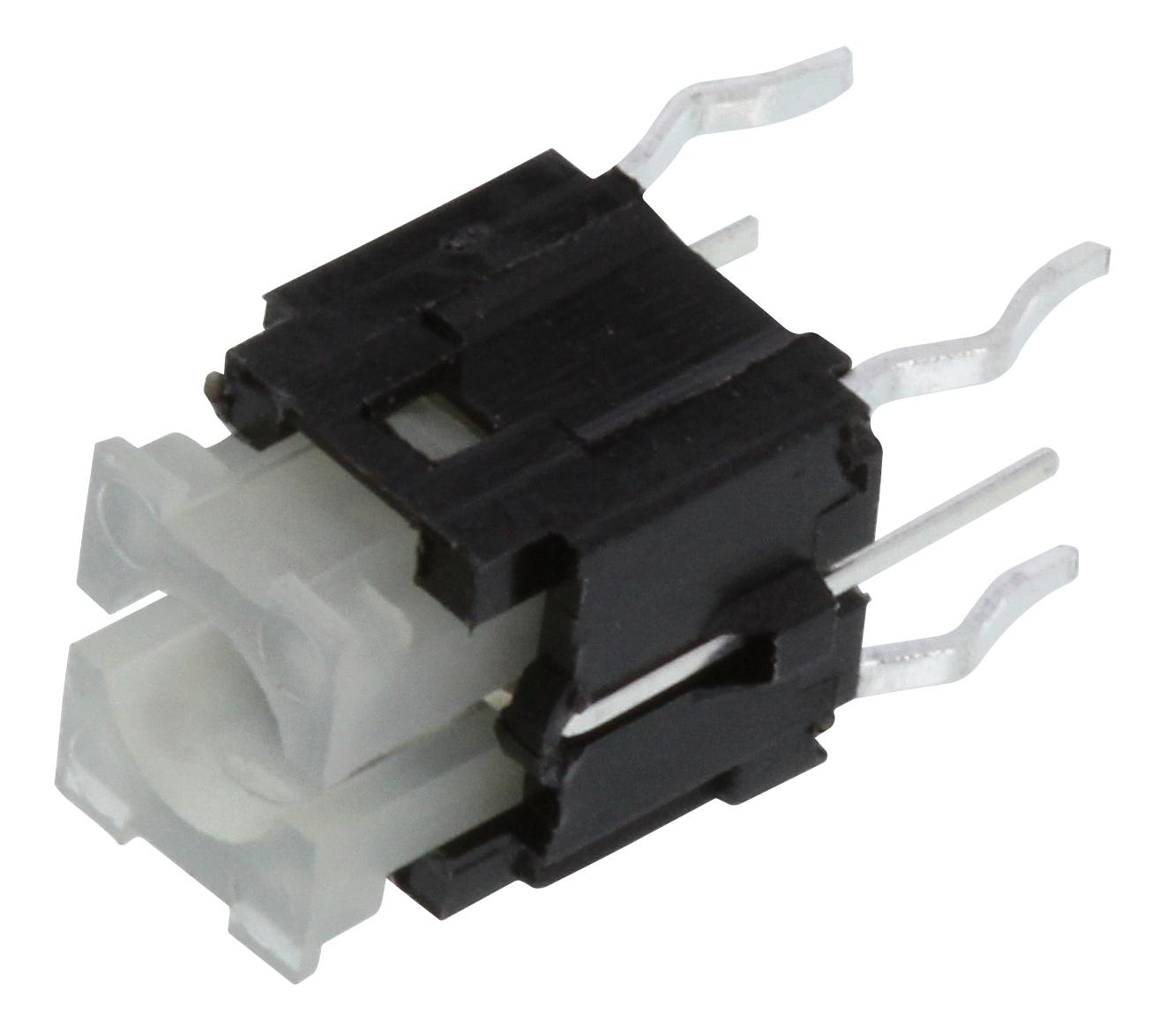

Buy the Buy CKSwitches ILS Series Integrated LED Tact Switch Part Number ILSTB18010 Online
Secure your CKSwitches ILS Series LED Tactile Switch online today. Designed for durability and versatility, it offers various LED colors, multiple heights, and a long mechanical lifespan of 100,000 cycles. Its rated current of 100mA at 30VDC and dielectric withstand voltage of 250VAC guarantee performance in consumer electronics, health monitoring devices, and multimedia controls. Easy to assemble with bulk packaging. Perfect for professional and hobbyist applications requiring reliable tactile feedback and clear illumination.
Order your CKSwitches ILS Series ILSTB18010 tactile switch today and enhance your electronic project with reliable actuation and LED indicators.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTB18010?
You can click on the BUY or RFQ button to purchase ILSTB18010 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTB18010?
You can download the ILSTB18010 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTB18010?
C&K COMPONENTS
