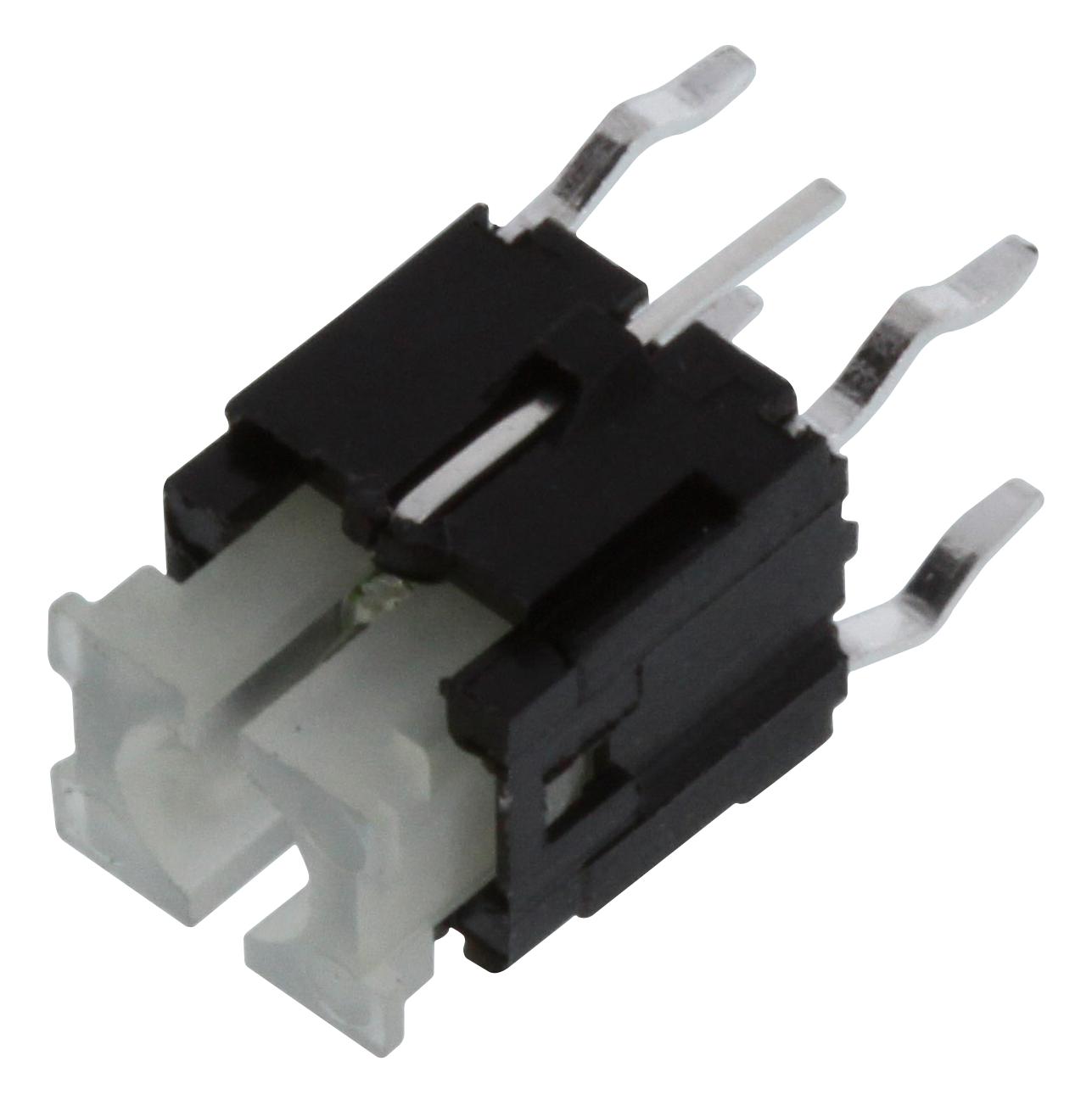

C&K COMPONENTS ILSTB18030 LED Tactile Switch
The ILS Series integrated LED tact switches are compact, high-reliability surface-mount switches equipped with built-in LEDs available in various colors such as red, yellow/green, blue, white, and green. Designed for consumer electronics, health monitoring devices, and control boards, these switches feature a travel distance of 0.25 mm, an operating life of 100,000 cycles, and rated at 100mA @ 30VDC. They sustain operating temperatures from -40°C to +85°C, ensuring durability in diverse environmental conditions, with multiple height options to suit different designs.
C&K COMPONENTS ILSTB18030 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Led Colors: Red, Yellow/Green, Blue, White, Green
- Led Forward Voltage: 2.3V to 3.6V depending on color
- Environmental: Resistant to high temperatures, suitable for various environments
- Physical: Compact sizes with height options of 7.00, 7.20, and 9.00 mm
- Packaging: Bulk in bags of 500 pieces, suitable for automated assembly
Buy the Buy CKSwitches ILS Series Integrated LED Tact Switch Part Number ILSTB18030 Online
Discover the versatile CKSwitches ILS Series LED tactile switches, ideal for consumer electronics, control panels, and measurement devices. Compact and durable, these switches feature multiple LED colors, a travel of 0.25 mm, and a lifespan of 100,000 cycles. Rated at 100mA @ 30VDC, they operate between -40°C to +85°C, suitable for wide environmental conditions. Available in various heights to fit your design needs, these switches are perfect for automation, testing, and entertainment devices. Buy online now for fast delivery and competitive pricing.
Order your CKSwitches ILS Series ILSTB18030 tactile switch today and enhance your electronic projects with reliable, high-quality actuation solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ILSTB18030?
You can click on the BUY or RFQ button to purchase ILSTB18030 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ILSTB18030?
You can download the ILSTB18030 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ILSTB18030?
C&K COMPONENTS
